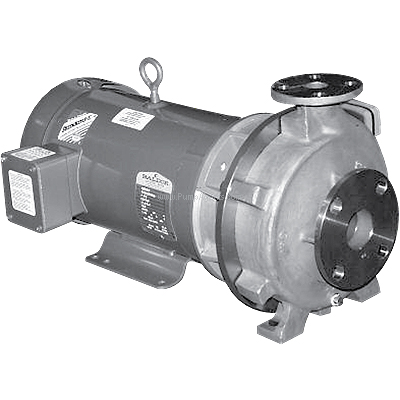

MP # 50574 Chemflo 6 Pump and Motor unit 3 HP

The MP 50574 is a Stainless Steel Chemflo 6 series Centrifugal Chemical Pump and Motor unit, with 5.93 inch Diameter Impeller, Silicon Carbide Mechanical Seal, 3 inch by 2 inch 150 lb. ANSI flange Ports, close coupled to a 3 Horsepower, 1750 RPM, 230/460 Volts, Three Phase Motor. Motors for this chemical pump include the 145TC, 184TC, and 215TC. The CHEMFLO 6 CC uses stainless steel parts to keep your pump running healthy and efficiently, ensuring no internal corrosion results. The end suction pump comes standard with a wide variety of mechanical seals to suit any application. The ChemFlo 6 pumps utilize an enclosed impeller designed for achieving higher heads and efficiencies than a standard semi-open impeller. Multiple impeller trims allow the ChemFlo 6 to meet most duty points up to 450 GPM and total head up to 157 feet. Several mechanical seal options are available in addition to the standard type 2100 carbon / ceramic / Viton mechanical seal. ChemFlo 6 pumps are offered in two configurations, pump (with motor) and PumPAK (without motor) versions. Motors available are 145TC, 184TC, and 215TC. If ordering a PumPAK please note that the electric motor must have a base.
