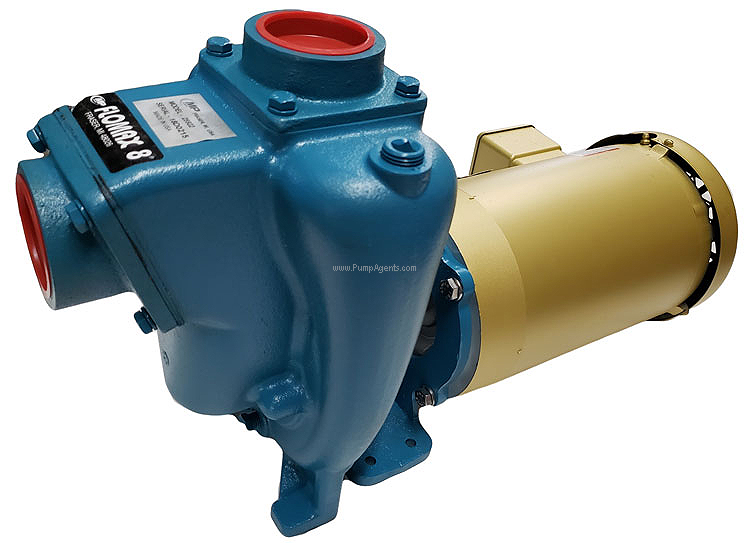

MP # 50522 Flomax 8 Pump and Motor unit 3 HP

The MP 50522 is a Stainless Steel Flomax 8 series Self Priming Centrifugal Pump and Motor unit, with 5.0 inch Diameter Impeller, 2 inch by 2 inch Ports, close coupled to a 3 Horsepower, 115/230 Volts, single phase Motor. Designed to provide a more robust and compact design, the Double Seal Flomax self priming centrifugal pump models provide excellent solutions to any OEM, industrial, or agricultural application. The patent pending design of this pump has the barrier fluid accumulator located directly on the body, resulting in decreased system costs and greater pump reliability. A FLOMAX 8, 316 SS PumPAK is a fully assembled and run tested pump end that can be easily coupled to a number of drivers such as hydraulic motors, 56C and 145TC frame motors and gas engines. A bearing pedestal is also available for T-frame motor or belt drive. Standard features include a 2 NPT 150# class flat flange on the suction of the pump, a Viton flapper, 2 SAE 4-bolt flat face discharge connection, stainless steel drive sleeve, stainless steel fasteners, renewable 316 SS wearplate, and a semi-open dynamically balanced 316 SS impeller. Options include a 5-blade high flow 316 stainless steel impeller and seals for all types of abrasive and/or corrosive services. The FLOMAX series of pumps are commonly used in Industrial, OEM, Agricultural and Marine applications, such as: Bilge Pumps, Auxiliary Fire Pumps, Ballast Transfer Pumps, Washdown Pumps, Fertilizer and Pesticide Pumps, Applicators and Sprayers, Blending Pumps, Nurse Tanks, Bulk Transfer Pumps and much more.
