MP # 50441 HHLF Pump and Motor unit 7-1/2 HP

MP Pump 50441

MP # 50441

MP catalog # 50441, HHLF series Self Priming Centrifugal Pump and Motor unit, Cast Iron construction, 6.7 inch diameter impeller. Motor is 7-1/2 Horsepower, 115/230 Volts, Single Phase. Inlet Port is High rise suction, Discharge Port is High rise suction.

Price : $ 3306.15

Qty :

Same Day (1 in stock)



Product Information :

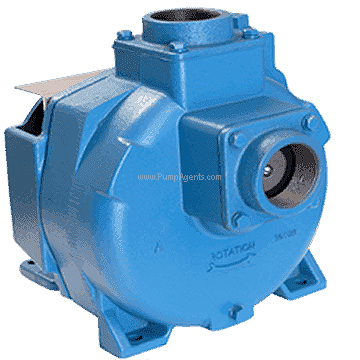

The MP 50441 is a Cast Iron HHLF series Self Priming Centrifugal Pump and Motor unit, with 6.7 inch Diameter Impeller, High rise suction Ports, close coupled to a 7-1/2 Horsepower, 115/230 Volts, single phase Motor. Engineered with a high suction centerline and impeller, this high pressure water pump eliminates premature priming loss while ensuring consistent priming capability. The HHLF self priming centrifugal pump meets USCG standards for auxiliary fire control and is ABS type approved. Featuring a volute and impeller can be easily replaced, this high pressure pump is built for agricultural, commercial, industrial, marine, and OEM applications. The high suction centerline and impeller design eliminates premature priming loss while ensuring consistent priming capability. The HHLF pump is capable of achieving up to 25 feet suction lift. The HHLF series is available close coupled to NEMA C Face electric motors or as PumPAKs. The engine drive models are capable of close coupling to both gasoline and diesel engines with 1 inch keyed drive shafts. Pedestal mounted pumps are also available. The volute and impeller are removable and easily replaced.

Features :

Pump Body:
Cast Iron
Impeller:
6.7 inch Diameter
Port Size:
Inlet Port is High rise suction, Discharge Port is High rise suction.
Motor Specs :
7-1/2 Horsepower, 115/230 Volts, Single Phase.

Applications

Typical applications for the Gardner Denver MP model 50441 are Agricultural, Commercial, Industrial, Marine, OEM.
