MP # 50141 HTO 180 Pump Pack pump end only

MP Pump 50141

MP # 50141

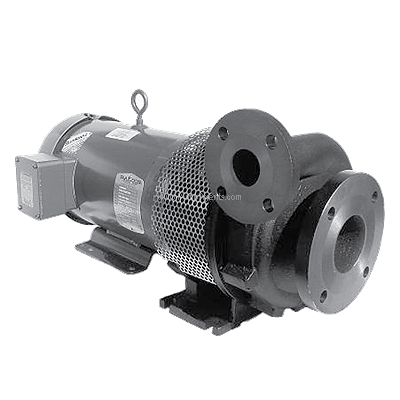

MP catalog # 50141, HTO 180 series Hot Oil Centrifugal Pump Pack pump end only for mounting on a motor, Ductile Iron construction, 5.8 inch diameter impeller, 1.375 inch size Shaft. Inlet Port is 3 inch, Discharge Port is 1-1/2 inch ANSI 150 lb. flat flange.

Price : $ 3332.22

Qty :

Same Day (1 in stock)



Product Information :

The MP 50141 is a Ductile Iron HTO 180 series Hot Oil Centrifugal Pump Pack pump end only for mounting on a motor, with 5.8 inch Diameter Impeller, 1.375 inch size shaft, 3 inch by 1-1/2 inch ANSI 150 lb. flat flange Ports, replacement pump end only without a Motor. This patented centrifugal hot oil pump was engineered to operate in high temperature applications, such as plastics, chemical, food, and processing. Available with or without a motor, the HTO 180 end suction pump was designed to be mounted vertically or horizontally. Cool ambient air temperature greatly increases the seals life, making this one of the most versatile hot oil pumps on the market.

Features :

Pump Body:
Ductile Iron
Impeller:
5.8 inch Diameter
Shaft:
1.375 inch size
Port Size:
Inlet Port is 3 inch, Discharge Port is 1-1/2 inch ANSI 150 lb. flat flange.
Motor Specs :
Horsepower.

Applications

Typical applications for the Gardner Denver MP model 50141 are Industrial, OEM.
