MP # 50070 Chemflo 7 Pump Pack pump end only

MP Pump 50070

MP # 50070

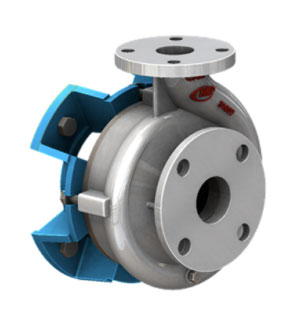

MP catalog # 50070, Chemflo 7 series Centrifugal Chemical Pump Pack pump end only for mounting on a motor, Stainless Steel construction, 6.5 inch diameter impeller, T-2 Mechanical seal double convolution. Inlet Port is 2 inch, Discharge Port is 1 inch 150 lb. ANSI flange.

Price : $ 3453.09

Qty :

Same Day (1 in stock)



Product Information :

The MP 50070 is a Stainless Steel Chemflo 7 series Centrifugal Chemical Pump Pack pump end only for mounting on a motor, with 6.5 inch Diameter Impeller, T/2 double convolution Mechanical Seal, 2 inch by 1 inch 150 lb. ANSI flange Ports, replacement pump end only without a Motor. The CHEMFLO 7 CC chemical pumps were designed to be applied through a wide range of pumping applications. Utilizing a semi-open impeller, this durable end suction centrifugal pump can put out 200GPM and reach head heights of 280 Feet. 316 stainless steel components keep this centrifugal pump running clean and corrosion free. The ChemFlo 7 pumps utilize an enclosed impeller designed for achieving higher heads and efficiencies than a standard semi-open impeller. Multiple impeller trims allow the ChemFlo 7 to meet most duty points up to 200 GPM and total head up to 280 feet. Several mechanical seal options are available in addition to the standard type 2100 carbon / ceramic / Viton mechanical seal. ChemFlo 7 pumps are offered in two configurations, pump (with motor) and PumPAK (without motor) versions. Motors available are 145TC, 184TC, 215TC, and 256TC. If ordering a PumPAK please note that the electric motor must have a base.

Features :

Pump Body:
Stainless Steel
Impeller:
6.5 inch Diameter
Shaft Seal:
T-2 Mechanical seal double convolution
Port Size:
Inlet Port is 2 inch, Discharge Port is 1 inch 150 lb. ANSI flange.
Motor Specs :
Horsepower.

Applications

Typical applications for the Gardner Denver MP model 50070 are Agricultural, Commercial, Industrial, Marine, OEM.
