MP # 39697 CFX 75 H Pump and Motor unit 1/6 HP
MP # 39697

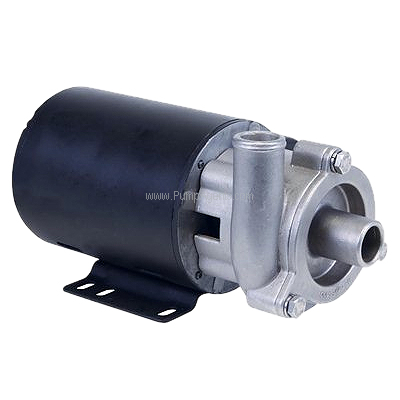

MP catalog # 39697, CFX 75 H series End Suction Centrifugal Circulator Pump and Motor unit, Stainless Steel construction, T-21 Mechanical seal with a single convolution. Motor is 1/6 Horsepower, 115/230 Volts, Single Phase, ODP (Open Drip Proof). Inlet Port is 3/4 inch NPT, Discharge Port is 3/4 inch NPT.
Price : $ 483.48
Product Information :
The MP 39697 is a Stainless Steel CFX 75 H series End Suction Centrifugal Circulator Pump and Motor unit, with T/21, a single convolution Mechanical Seal, 3/4 inch NPT by 3/4 inch NPT Ports, close coupled to a 1/6 Horsepower, 115/230 Volts, single phase, ODP (Open Drip Proof) Motor. Engineered to resist corrosion generated from harmful chemicals, the internal components of the CFX 75 H chemical pump are made of 316 stainless steel. This end suction centrifugal pump was designed with an easy hose connection to work in marine, agricultural, commercial, and industrial applications. The CFX75 H model features all 316 stainless steel components for superior corrosion resistance when pumping chemical compounds. A carbon/ceramic/Viton bellows shaft seal is standard. Ports are 3/4 inch NPT connections. Marine ignition protected motors available. Pump can be rotated in 90 degree increments.
Features :
Applications
Typical applications for the Gardner Denver MP model 39697 are Agricultural, Commercial, Industrial, Marine.
