MP # 39446 Flomax 30 Pump and Motor unit 20 HP

MP Pump 39446

MP # 39446

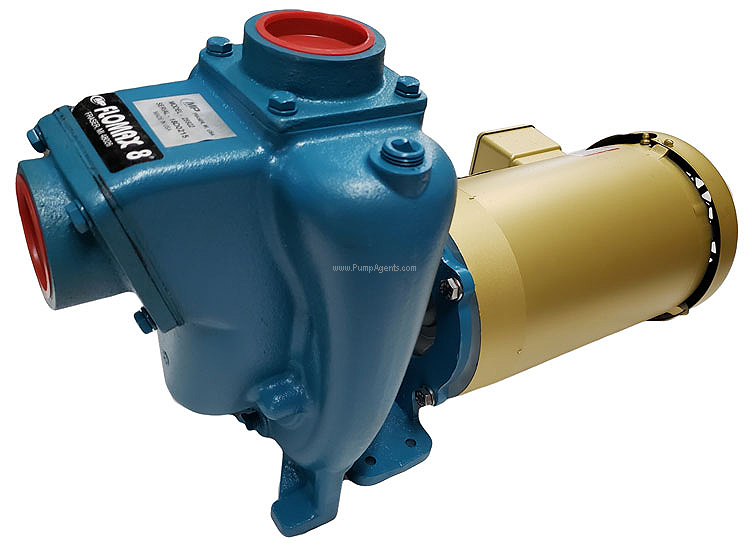

MP catalog # 39446, Flomax 30 series Self Priming Centrifugal Pump and Motor unit, Cast Iron construction, Bronze Impeller, 6.3 inch diameter impeller. Motor is 20 Horsepower, 230/460 Volts, Three Phase. Inlet Port is 3 inch, Discharge Port is 3 inch NPT.

Price : $ 10823.79

Qty :

2 Weeks (0 in stock)



Product Information :

The MP 39446 is a Cast Iron Flomax 30 series Self Priming Centrifugal Pump and Motor unit, with Bronze Impeller 6.3 inch Diameter Impeller, 3 inch by 3 inch NPT Ports, close coupled to a 20 Horsepower, 230/460 Volts, Three Phase Motor. Standard features on this self priming pump include stainless steel fasteners and renewable wear plates. The FLOMAX 30 self priming centrifugal pump can generate enough power to lift liquids up to 25 feet. To keep a full column of liquid in the suction line and to ensure this machine keeps running efficiently, a flapper valve has been installed. A FLOMAX 30 PumPAK is a fully assembled and run tested pump end that can be easily coupled to a number of drivers such as 182TC to 256TC frame motors and gas engines. A bearing pedestal is also available for T-frame motor or belt drive. Standard features include stainless steel drive sleeve, stainless steel fasteners, renewable wear plate, and a semi-open dynamically balanced impeller. The FLOMAX series of pumps are commonly used in Industrial, OEM, Agricultural and Marine applications, such as: Bilge Pumps, Auxiliary Fire Pumps, Ballast Transfer Pumps, Washdown Pumps, Fertilizer and Pesticide Pumps, Applicators and Sprayers, Blending Pumps, Nurse Tanks, Bulk Transfer Pumps and much more.

Features :

Pump Body:
Cast Iron
Impeller:
Bronze Impeller, 6.3 inch Diameter
Port Size:
Inlet Port is 3 inch, Discharge Port is 3 inch NPT.
Motor Specs :
20 Horsepower, 230/460 Volts, Three Phase.

Applications

Typical applications for the Gardner Denver MP model 39446 are Agricultural, Industrial, Marine, OEM.
