MP # 39413 Chemflo 7 Pump and Motor unit 7-1/2 HP

MP Pump 39413

MP # 39413

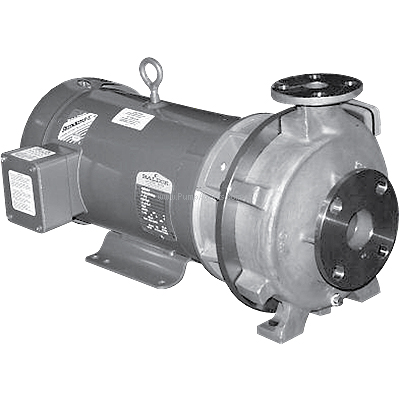

MP catalog # 39413, Chemflo 7 series Centrifugal Chemical Pump and Motor unit, Stainless Steel construction, 7.25 inch diameter impeller, T-2 Mechanical seal double convolution. Motor is 7-1/2 Horsepower, 230/460 Volts, Three Phase. Inlet Port is 2 inch, Discharge Port is 1 inch 150 lb. ANSI flange.

Price : $ 6956.74

Qty :

2 Weeks (0 in stock)



Product Information :

The MP 39413 is a Stainless Steel Chemflo 7 series Centrifugal Chemical Pump and Motor unit, with 7.25 inch Diameter Impeller, T/2 double convolution Mechanical Seal, 2 inch by 1 inch 150 lb. ANSI flange Ports, close coupled to a 7-1/2 Horsepower, 230/460 Volts, Three Phase Motor. The CHEMFLO 7 CC chemical pumps were designed to be applied through a wide range of pumping applications. Utilizing a semi-open impeller, this durable end suction centrifugal pump can put out 200GPM and reach head heights of 280 Feet. 316 stainless steel components keep this centrifugal pump running clean and corrosion free. The ChemFlo 7 pumps utilize an enclosed impeller designed for achieving higher heads and efficiencies than a standard semi-open impeller. Multiple impeller trims allow the ChemFlo 7 to meet most duty points up to 200 GPM and total head up to 280 feet. Several mechanical seal options are available in addition to the standard type 2100 carbon / ceramic / Viton mechanical seal. ChemFlo 7 pumps are offered in two configurations, pump (with motor) and PumPAK (without motor) versions. Motors available are 145TC, 184TC, 215TC, and 256TC. If ordering a PumPAK please note that the electric motor must have a base.

Features :

Pump Body:
Stainless Steel
Impeller:
7.25 inch Diameter
Shaft Seal:
T-2 Mechanical seal double convolution
Port Size:
Inlet Port is 2 inch, Discharge Port is 1 inch 150 lb. ANSI flange.
Motor Specs :
7-1/2 Horsepower, 230/460 Volts, Three Phase.

Applications

Typical applications for the Gardner Denver MP model 39413 are Agricultural, Commercial, Industrial, Marine, OEM.
