MP # 38526 2CT Pedestal pump end only

MP Pump 38526

MP # 38526

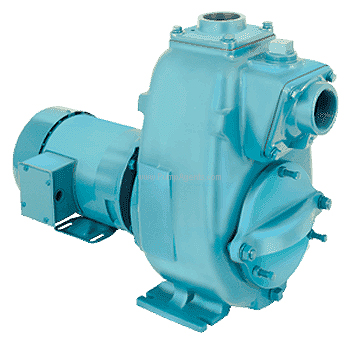

MP catalog # 38526, 2CT series Pedestal Self Priming Centrifugal Trash Pump end only, bare shafted, Cast Iron construction, T-21 Mechanical seal with a single convolution. Inlet Port is 2 inch, Discharge Port is 2 inch.

Price : $ 2599.10

Qty :

Same Day (1 in stock)



Product Information :

The MP 38526 is a Cast Iron 2CT series Pedestal Self Priming Centrifugal Trash Pump end only, bare shafted, with T/21, a single convolution Mechanical Seal, 2 inch by 2 inch Ports, replacement pump end only without a Motor. The 2CT self-priming centrifugal trash pump is capable of creating vacuum sufficient to lift liquids from heights up to 20 feet above the source and only requires priming prior to its initial start. This self priming centrifugal pump features a back pull-out design and a removable front trash cleanout for easy maintenance. A 304 Stainless Steel drive sleeve protects the close coupled driver shaft. This trash pump has a removeable trash cleanout and will pass up to 1.5 inch inch solids.

Features :

Pump Body:
Cast Iron
Shaft Seal:
T-21 Mechanical seal with a single convolution
Port Size:
Inlet Port is 2 inch, Discharge Port is 2 inch.
Motor Specs :
Horsepower.

Applications

Typical applications for the Gardner Denver MP model 38526 are Applications for the 38526 include Commercial, Industrial and OEM applications. For installation, optimum performance can be attained by placing the pump as close to the liquid source as possible. Secure the pump by mounting it to a foundation or base plate. Hose or pipe can be used on the suction and discharge. The suction line must not be reduced in size. If hose is used, reinforced noncollapsible type is recommended. The discharge line must be rated to the maximum pressure developed by the pump.
