MP # 38502 Chemflo 6 Pedestal pump end only

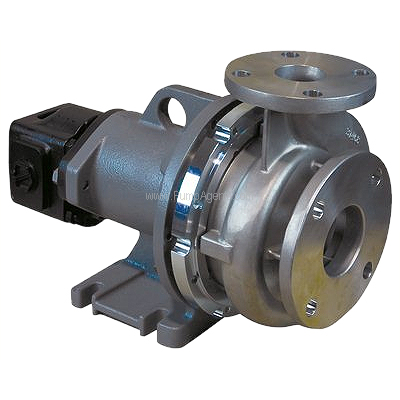

The MP 38502 is a Stainless Steel Chemflo 6 series Pedestal Centrifugal Chemical Pump end only, bare shafted, with 5.93 inch Diameter Impeller, 3 inch by 2 inch 150 lb. ANSI flange Ports, replacement pump end only without a Motor. An enclosed impeller design paired with all wetted 316 stainless steel components results in this chemical pump being one of the most efficient on the market. Several mechanical seal options are available in addition to the standard type 210 carbon/ceramic/Viton mechanical seal for this end suction centrifugal pump. The ChemFlo 6 pumps utilize an enclosed impeller designed for achieving higher heads and efficiencies than a standard semi-open impeller. Multiple impeller trims allow the ChemFlo 6 to meet most duty points up to 450 GPM and total head up to 157 feet. Several mechanical seal options are available in addition to the standard type 2100 carbon / ceramic / Viton mechanical seal. All wetted components are 316 investment cast stainless steel providing superior corrosion resistance when pumping chemical compounds. The Chemflo 6 pedestal uses a pump end (PumPAK) design that is interchangeable with 145TC, 184TC, or 215TC electric motors. If ordering a PumPAK with a 145TC please note that the electric motor must have a base.
