MP 38162 HTO 300 Pump Pack pump end only

MP # 38162 HTO 300 Pump Pack pump end only

MP # 38162

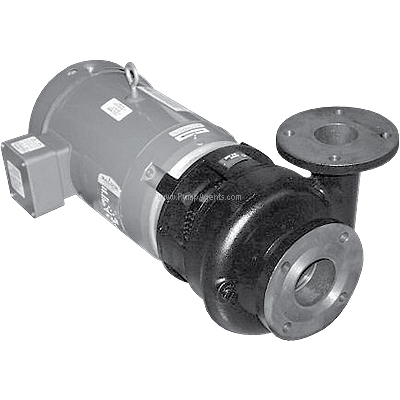

MP catalog # 38162, HTO 300 series Hot Oil Centrifugal Pump Pack pump end only for mounting on a motor, Ductile Iron construction, 6.62 inch diameter impeller, 1.125 inch size Shaft. Inlet Port is 3 inch, Discharge Port is 2-1/2 inch ANSI 150 lb. flat flange.

Price : $ 4958.51

Product Information :

The MP 38162 is a Ductile Iron HTO 300 series Hot Oil Centrifugal Pump Pack pump end only for mounting on a motor, with 6.62 inch Diameter Impeller, 1.125 inch size shaft, 3 inch by 2-1/2 inch ANSI 150 lb. flat flange Ports, replacement pump end only without a Motor. Versatile enough to be mounted vertically or horizontally, this end suction centrifugal pump was created to operate at high temperatures up to 650 F (343 C). Applications for this hot oil pump include the food, processing, chemical, and plastic industries. Internal technology utilizes ambient air as its cooling source to reduce the operating temperature of the HTO 300. An electric motor for this hot oil pump is optional.

Features :

Pump Body:

Ductile Iron

Impeller:

6.62 inch Diameter

Shaft:

1.125 inch size

Port Size:

Inlet Port is 3 inch, Discharge Port is 2-1/2 inch ANSI 150 lb. flat flange.

Motor Specs :

Horsepower.
