MP # 38137 Chemflo 4 Pump and Motor unit 3 HP

MP Pump 38137

MP # 38137

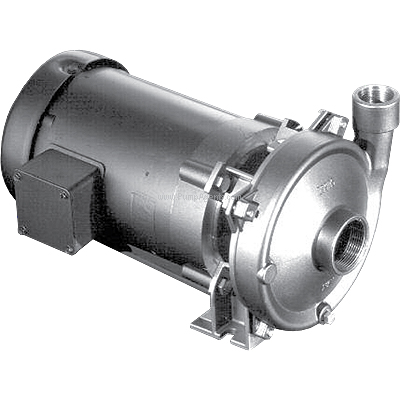

MP catalog # 38137, Chemflo 4 series Centrifugal Chemical Pump and Motor unit, minus base, Stainless Steel construction, 3.57 inch diameter impeller. Motor is 3 Horsepower, 230/460 Volts, Three Phase. Inlet Port is 2 inch, Discharge Port is 1-1/2 inch NPT.

Price : $ 2020.03

Qty :

Same Day (1 in stock)



Product Information :

The MP 38137 is a Stainless Steel Chemflo 4 series Centrifugal Chemical Pump and Motor unit, minus base, with 3.57 inch Diameter Impeller, 2 inch by 1-1/2 inch NPT Ports, close coupled to a 3 Horsepower, 230/460 Volts, Three Phase Motor. Great for a wide range of applications, this chemical pump prevents corrosion from occurring internally by using 316 stainless steel. The end suction centrifugal pump contains a drive sleeve made out of CA 958 nickel aluminum bronze to maximize efficiency. Made with high quality investment cast 316 stainless steel components, the ChemFlo series of pumps are designed to be applied in a wide range of pumping applications where stainless steel is required. ChemFlo 4 pumps utilize a semi-open impeller design to allow for passage of larger solid sizes. Several seal options are available in addition to the standard type 2100 carbon / ceramic / Viton mechanical seal. ChemFlo 4 pumps are offered in two configurations, pump (with motor) and PumPAK (without motor) versions. Motors available are 56C and 145TC. If ordering a PumPAK for a 145TC motor please note that the electric motor must have a base. Other drive options are available. Further expanding the versatility of the ChemFlo series is the CFB 4 pump, a ChemFlo 4 in NiBrAl material. All wetted parts are produced in CA 958 nickel aluminum bronze including the drive sleeve to maximize corrosion protection in seawater applications.

Features :

Pump Body:
Stainless Steel
Impeller:
3.57 inch Diameter
Port Size:
Inlet Port is 2 inch, Discharge Port is 1-1/2 inch NPT.
Motor Specs :
3 Horsepower, 230/460 Volts, Three Phase.

Applications

Typical applications for the Gardner Denver MP model 38137 are Agricultural, Commercial, Industrial, Marine, OEM.
