MP # 38129 2CT Pump and Motor unit 1-1/2 HP

MP Pump 38129

MP # 38129

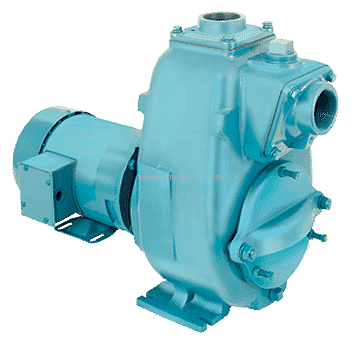

MP catalog # 38129, 2CT series Self Priming Centrifugal Trash Pump and Motor unit, minus base, Cast Iron construction, 5.25 inch diameter impeller, T-21 Mechanical seal with a single convolution. Motor is 1-1/2 Horsepower, 1750 RPM, 115/230 Volts, Single Phase. Inlet Port is 2 inch, Discharge Port is 2 inch.

Price : $ 3582.65

Qty :

Same Day (1 in stock)



Product Information :

The MP 38129 is a Cast Iron 2CT series Self Priming Centrifugal Trash Pump and Motor unit, minus base, with 5.25 inch Diameter Impeller, T/21, a single convolution Mechanical Seal, 2 inch by 2 inch Ports, close coupled to a 1-1/2 Horsepower, 1750 RPM, 115/230 Volts, single phase Motor. The 2CT self-priming centrifugal trash pump is capable of creating vacuum sufficient to lift liquids from heights up to 20 feet above the source and only requires priming prior to its initial start. This self priming centrifugal pump features a back pull-out design and a removable front trash cleanout for easy maintenance. A 304 Stainless Steel drive sleeve protects the close coupled driver shaft. This trash pump has a removeable trash cleanout and will pass up to 1.5 inch inch solids.

Features :

Pump Body:
Cast Iron
Impeller:
5.25 inch Diameter
Shaft Seal:
T-21 Mechanical seal with a single convolution
Port Size:
Inlet Port is 2 inch, Discharge Port is 2 inch.
Motor Specs :
1-1/2 Horsepower, 1750 RPM, 115/230 Volts, Single Phase.

Applications

Typical applications for the Gardner Denver MP model 38129 are Applications for the 38129 include Commercial, Industrial and OEM applications. For installation, optimum performance can be attained by placing the pump as close to the liquid source as possible. Secure the pump by mounting it to a foundation or base plate. Hose or pipe can be used on the suction and discharge. The suction line must not be reduced in size. If hose is used, reinforced noncollapsible type is recommended. The discharge line must be rated to the maximum pressure developed by the pump.
