MP # 37143 HTO 180 Pump Pack pump end only

MP Pump 37143

MP # 37143

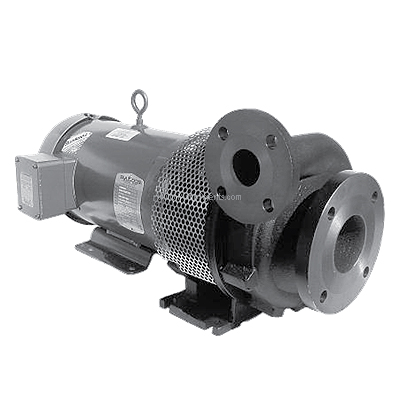

MP catalog # 37143, HTO 180 series Hot Oil Centrifugal Pump Pack pump end only for mounting on a motor, Ductile Iron construction, Ductile Iron Impeller, 5.8 inch diameter impeller. Inlet Port is 3 inch, Discharge Port is 1-1/2 inch ANSI 150 lb. flat flange.

Price : $ 3556.58

Qty :

Same Day (1 in stock)



Product Information :

The MP 37143 is a Ductile Iron HTO 180 series Hot Oil Centrifugal Pump Pack pump end only for mounting on a motor, with Ductile Iron Impeller 5.8 inch Diameter Impeller, 3 inch by 1-1/2 inch ANSI 150 lb. flat flange Ports, replacement pump end only without a Motor. This patented centrifugal hot oil pump was engineered to operate in high temperature applications, such as plastics, chemical, food, and processing. Available with or without a motor, the HTO 180 end suction pump was designed to be mounted vertically or horizontally. Cool ambient air temperature greatly increases the seals life, making this one of the most versatile hot oil pumps on the market.

Features :

Pump Body:
Ductile Iron
Impeller:
Ductile Iron Impeller, 5.8 inch Diameter
Port Size:
Inlet Port is 3 inch, Discharge Port is 1-1/2 inch ANSI 150 lb. flat flange.
Motor Specs :
Horsepower.

Applications

Typical applications for the Gardner Denver MP model 37143 are Industrial, OEM.
