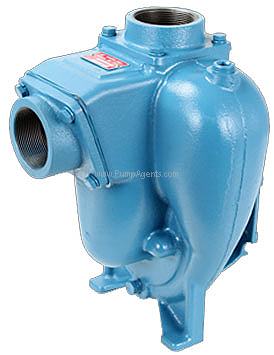

MP catalog # 36311, Flomax 8 series Self Priming Centrifugal Pump Pack pump end only for mounting on a motor, Cast Iron construction, 5.0 inch diameter impeller, T-21 Mechanical seal with a single convolution. Inlet Port is 2 inch, Discharge Port is 2 inch.
Price : $ 831.48
The MP 36311 is a Cast Iron Flomax 8 series Self Priming Centrifugal Pump Pack pump end only for mounting on a motor, with 5.0 inch Diameter Impeller, T/21, a single convolution Mechanical Seal, 2 inch by 2 inch Ports, replacement pump end only without a Motor. Once primed, the FLOMAX 8 self priming centrifugal pump is able to keep a full column of liquid in the suction line with a flapper valve. Up to 25 feet of lift can be created from the technology found inside this self priming pump. The centrifugal pump contains stainless steel fasteners and drive shaft; making it perfect for every application inside the industrial, OEM, agricultural and marine industries. A FLOMAX 8 PumPAK is a fully assembled and run tested pump end that can be easily coupled to a number of drivers such as hydraulic motors, 56C and 145TC frame motors and gas engines. A bearing pedestal is also available for T-frame motor or belt drive. Standard features include stainless steel drive sleeve, stainless steel fasteners, renewable wearplate, and a semi-open dynamically balanced impeller. The FLOMAX series of pumps are commonly used in Industrial, OEM, Agricultural and Marine applications, such as: Bilge Pumps, Auxiliary Fire Pumps, Ballast Transfer Pumps, Washdown Pumps, Fertilizer and Pesticide Pumps, Applicators and Sprayers, Blending Pumps, Nurse Tanks, Bulk Transfer Pumps and much more.
Shaft Seal :
Catalog # 31796, Seal Assembly, 1 T-21 Ccs Viton
Price: $ 74.93
Typical applications for the Gardner Denver MP model 36311 are Agricultural, Industrial, Marine, OEM.
