MP # 35779 CFX 100 Pump and Motor unit 3/4 HP

MP Pump 35779

MP # 35779

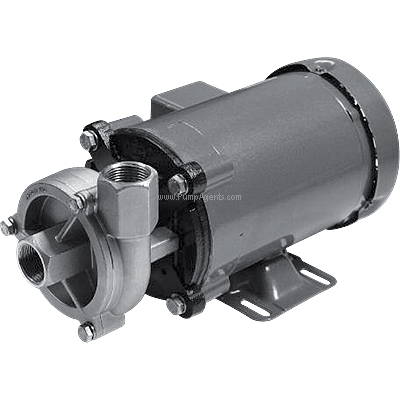

MP catalog # 35779, CFX 100 series End Suction Centrifugal Circulator End Suction Centrifugal Circulator Pump and Motor unit, Stainless Steel construction, 3.75 inch diameter impeller. Motor is 3/4 Horsepower, 230/460 Volts, Three Phase, TEFC (Totally Enclosed Fan Cooled). Inlet Port is 1 inch NPT, Discharge Port is 1 inch NPT.

Price : $ 1277.43

Qty :

Same Day (1 in stock)



Product Information :

The MP 35779 is a Stainless Steel CFX 100 series End Suction Centrifugal Circulator End Suction Centrifugal Circulator Pump and Motor unit, with 3.75 inch Diameter Impeller, 1 inch NPT by 1 inch NPT Ports, close coupled to a 3/4 Horsepower, 230/460 Volts, Three Phase, TEFC (Totally Enclosed Fan Cooled) Motor. The CFX 100 316 stainless steel end suction centrifugal pump is ideal for hard-to-handle applications in the marine, commercial, and industrial markets. The special steel on this chemical pump severely restricts the amount of corrosion that certain chemicals can inflict on the system. Each CFX 100 chemical pump comes with a carbon / ceramic / Viton bellows shaft seal to maximize efficiency. All wetted components are 316 investment cast stainless steel providing superior corrosion resistance when pumping chemical compounds. A carbon / ceramic / Viton bellows shaft seal is standard with optional seals available on request. The CFX 100 model is available with 1 inch NPT port configurations. Pump rotation in 90 degree increments.

Features :

Pump Body:
Stainless Steel
Impeller:
3.75 inch Diameter
Port Size:
Inlet Port is 1 inch NPT, Discharge Port is 1 inch NPT.
Motor Specs :
3/4 Horsepower, 230/460 Volts, Three Phase, TEFC (Totally Enclosed Fan Cooled).

Applications

Typical applications for the Gardner Denver MP model 35779 are Agricultural, Commercial, Industrial, Marine.
