MP # 35396 Pump and Motor unit 1 HP

MP Pump 35396

MP # 35396

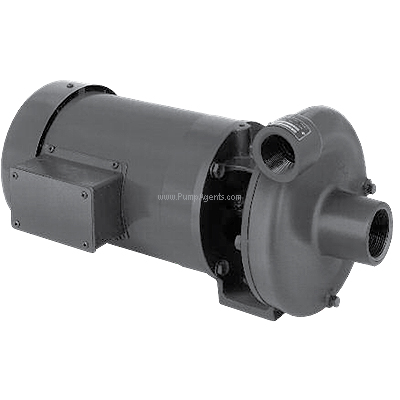

MP catalog # 35396, Pump and Motor unit, Cast Iron construction, Ductile Iron Impeller, 4.25 inch diameter impeller. Motor is 1 Horsepower, 230/460 Volts, Three Phase, TEFC (Totally Enclosed Fan Cooled).

Price : $ 1967.89

Qty :

Same Day (1 in stock)



Product Information :

The MP 35396 is a Cast Iron Pump and Motor unit, with Ductile Iron Impeller 4.25 inch Diameter Impeller, coupled to a 1 Horsepower, 230/460 Volts, Three Phase, TEFC (Totally Enclosed Fan Cooled) Motor. Series 80 end suction centrifugal pumps are close coupled to standard NEMA "C" face motors. This industrial liquid pump is available in cast iron, bronze, or aluminum. All fasteners are stainless steel to prolong the life of the pump by reducing corrosion. Agricultural, commercial, industrial, and OEM industries are where these end suction centrifugal pumps can be applied. All fasteners are stainless steel to reduce corrosion. Impellers are dynamically balanced to improve efficiency and bearing life. Standard carbon / ceramic / Viton mechanical seal is self-adjusting and corrosion resistant to handle almost any liquid. Completely tested "Wet End" PumPAKs are available without motors. The MP PumPAK can be mounted to standard NEMA C frame motors in just minutes.

Features :

Pump Body:
Cast Iron
Impeller:
Ductile Iron Impeller, 4.25 inch Diameter
Motor Specs :
1 Horsepower, 230/460 Volts, Three Phase, TEFC (Totally Enclosed Fan Cooled).

Applications

Typical applications for the Gardner Denver MP model 35396 are Agricultural, Commercial, Industrial, OEM.
