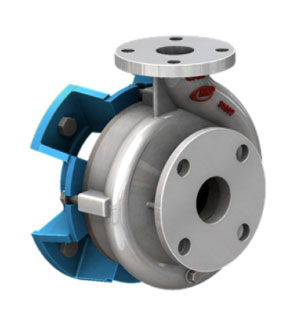

MP # 35362 Chemflo 9 Pump Pack pump end only

MP Pump 35362

MP # 35362

MP catalog # 35362, Chemflo 9 series Centrifugal Chemical Pump Pack pump end only for mounting on a motor, Stainless Steel construction, 9.25 inch diameter impeller, T-21 Mechanical seal with a single convolution. Inlet Port is 2 inch, Discharge Port is 1 inch 150 lb. ANSI flange.

Price : $ 4290.49

Qty :

Same Day (1 in stock)



Product Information :

The MP 35362 is a Stainless Steel Chemflo 9 series Centrifugal Chemical Pump Pack pump end only for mounting on a motor, with 9.25 inch Diameter Impeller, T/21, a single convolution Mechanical Seal, 2 inch by 1 inch 150 lb. ANSI flange Ports, replacement pump end only without a Motor. The CHEMFLO 9 end suction centrifugal pump was engineered to be highly efficient. Featuring a total head up to 460 feet and a flow reaching up to 270 GPM, this chemical pump can run all of your hazardous materials without corroding. Multiple seal options are available on top of the standard 2100 carbon / ceramic / Viton mechanical seal. The ChemFlo 9 pumps utilize an enclosed impeller designed for achieving higher heads and efficiencies than a standard semi-open impeller. Multiple impeller trims allow the ChemFlo 9 to meet most duty points up to 270 GPM and total head up to 460 feet. Several mechanical seal options are available in addition to the standard type 2100 carbon / ceramic / Viton mechanical seal. ChemFlo 9 pumps are offered in two configurations, pump (with motor) and PumPAK (without motor) versions. Motors available are 184TC, 215TC, 256TC, 286TSC, and 324TS. If ordering a PumPAK please note that the electric motor must have a base.

Features :

Pump Body:
Stainless Steel
Impeller:
9.25 inch Diameter
Shaft Seal:
T-21 Mechanical seal with a single convolution
Port Size:
Inlet Port is 2 inch, Discharge Port is 1 inch 150 lb. ANSI flange.
Motor Specs :
Horsepower.

Applications

Typical applications for the Gardner Denver MP model 35362 are Agricultural, Commercial, Industrial, Marine, OEM.
