MP # 35286 HTO 80 Pump and Motor unit 3 HP

MP Pump 35286

MP # 35286

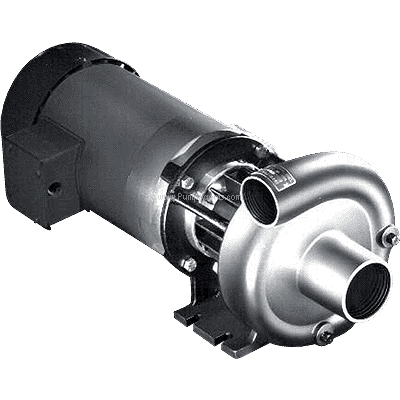

MP catalog # 35286, HTO 80 series Hot Oil Centrifugal Pump and Motor unit, Ductile Iron construction, Ductile Iron Impeller, 5.25 inch diameter impeller. Motor is 3 Horsepower, 230/460 Volts, Three Phase, TEFC (Totally Enclosed Fan Cooled). Inlet Port is 1-1/2 inch, Discharge Port is 1-1/4 inch NPT or flat flange option.

Price : $ 3220.04

Qty :

Same Day (1 in stock)



Product Information :

The MP 35286 is a Ductile Iron HTO 80 series Hot Oil Centrifugal Pump and Motor unit, with Ductile Iron Impeller 5.25 inch Diameter Impeller, 1-1/2 inch by 1-1/4 inch NPT or flat flange option Ports, close coupled to a 3 Horsepower, 230/460 Volts, Three Phase, TEFC (Totally Enclosed Fan Cooled) Motor. The HTO 80 is an end suction centrifugal pump that is close coupled to standard NEMA "C" face motors. All models of these hot oil pumps are available in cast iron, bronze, or aluminum construction to suit a wide variety of liquids. Outfitted with an insulated air cooled seal chamber, this centrifugal pump was engineered to run efficiently at exceptionally high temperatures.

Features :

Pump Body:
Ductile Iron
Impeller:
Ductile Iron Impeller, 5.25 inch Diameter
Port Size:
Inlet Port is 1-1/2 inch, Discharge Port is 1-1/4 inch NPT or flat flange option.
Motor Specs :
3 Horsepower, 230/460 Volts, Three Phase, TEFC (Totally Enclosed Fan Cooled).

Applications

Typical applications for the Gardner Denver MP model 35286 are Industrial, OEM.
