MP # 35243 HTO 300 Pump and Motor unit 10 HP

MP Pump 35243

MP # 35243

MP catalog # 35243, HTO 300 series Hot Oil Centrifugal Pump and Motor unit, Ductile Iron construction, 6.0 inch diameter impeller. Motor is 10 Horsepower, 230/460 Volts, Three Phase. Inlet Port is 3 inch, Discharge Port is 2-1/2 inch ANSI 150 lb. flat flange.

Price : $ 6145.41

Qty :

2 Weeks (0 in stock)



Product Information :

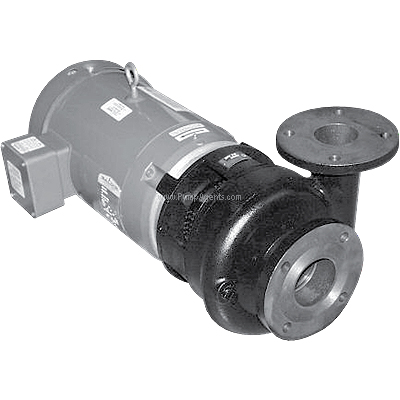

The MP 35243 is a Ductile Iron HTO 300 series Hot Oil Centrifugal Pump and Motor unit, with 6.0 inch Diameter Impeller, 3 inch by 2-1/2 inch ANSI 150 lb. flat flange Ports, close coupled to a 10 Horsepower, 230/460 Volts, Three Phase Motor. Versatile enough to be mounted vertically or horizontally, this end suction centrifugal pump was created to operate at high temperatures up to 650 F (343 C). Applications for this hot oil pump include the food, processing, chemical, and plastic industries. Internal technology utilizes ambient air as its cooling source to reduce the operating temperature of the HTO 300. An electric motor for this hot oil pump is optional.

Features :

Pump Body:
Ductile Iron
Impeller:
6.0 inch Diameter
Port Size:
Inlet Port is 3 inch, Discharge Port is 2-1/2 inch ANSI 150 lb. flat flange.
Motor Specs :
10 Horsepower, 230/460 Volts, Three Phase.

Applications

Typical applications for the Gardner Denver MP model 35243 are Industrial, OEM.
