MP # 35042 Chemflo 5 Pump Pack pump end only

MP Pump 35042

MP # 35042

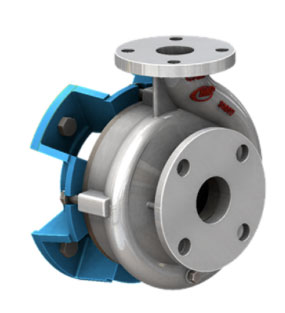

MP catalog # 35042, Chemflo 5 series Centrifugal Chemical Pump Pack pump end only for mounting on a motor, Stainless Steel construction, 6.18 inch diameter impeller, Silicon Carbide Mechanical seal. Inlet Port is 2 inch, Discharge Port is 1-1/2 inch ANSI 150 lb. flange.

Price : $ 2693.11

Qty :

Same Day (1 in stock)



Product Information :

The MP 35042 is a Stainless Steel Chemflo 5 series Centrifugal Chemical Pump Pack pump end only for mounting on a motor, with 6.18 inch Diameter Impeller, Silicon Carbide Mechanical Seal, 2 inch by 1-1/2 inch ANSI 150 lb. flange Ports, replacement pump end only without a Motor. A fully enclosed impeller ensures this chemical pump will run smoothly and efficiently. To add to this end suction centrifugal pumps efficiency, high quality stainless steel prevents any chemical corrosion from taking place internally. The CHEMFLO 5 CC features a total head up to 157 feet and flows up to 300 GPM. The ChemFlo 5 pumps utilize an enclosed impeller designed for achieving higher heads and efficiencies than a standard semi-open impeller. Multiple impeller trims allow the ChemFlo 5 to meet most duty points up to 300 GPM and total head up to 157 feet. Several mechanical seal options are available in addition to the standard type 2100 carbon / ceramic / Viton mechanical seal. ChemFlo 5 pumps are offered in two configurations, pump (with motor) and PumPAK (without motor) versions. Motors available are 145TC, 184TC, and 215TC. If ordering a PumPAK please note that the electric motor must have a base.

Features :

Pump Body:
Stainless Steel
Impeller:
6.18 inch Diameter
Shaft Seal:
Silicon Carbide Mechanical seal
Port Size:
Inlet Port is 2 inch, Discharge Port is 1-1/2 inch ANSI 150 lb. flange.
Motor Specs :
Horsepower.

Applications

Typical applications for the Gardner Denver MP model 35042 are Agricultural, Commercial, Industrial, Marine, OEM.
