MP # 34792 Flomax 15 Pump Pack pump end only

MP Pump 34792

MP # 34792

MP catalog # 34792, Flomax 15 series Self Priming Centrifugal Pump Pack pump end only for mounting on a motor, Stainless Steel construction, 6.0 inch diameter impeller. Inlet Port is 3 inch NPT ANSI 150 lb. class flat flange with Viton flapper (Suction) / 3 inch ANSI 4-bolt flange connection, Optional 3 inch NPT ANSI 150 lb. Flange Available. Part number for Optional Discharge Flange Kit: 38647 (Discharge), Discharge Port is 3 inch NPT ANSI 150 lb. class flat flange with Viton flapper (Suction) / 3 inch ANSI 4-bolt flange connection, Optional 3 inch NPT ANSI 150 lb. Flange Available. Part number for Optional Discharge Flange Kit: 38647 (Discharge).

Price : $ 4281.01

Qty :

Same Day (1 in stock)



Product Information :

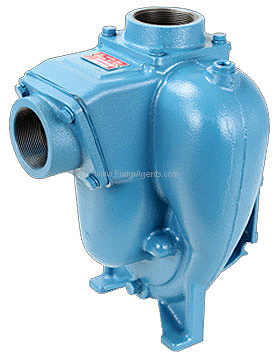

The MP 34792 is a Stainless Steel Flomax 15 series Self Priming Centrifugal Pump Pack pump end only for mounting on a motor, with 6.0 inch Diameter Impeller, 3 inch NPT ANSI 150 lb. class flat flange, Viton flapper (Suction) / 3 inch ANSI 4-bolt flange connection, Optional 3 inch NPT ANSI 150 lb. Flange Available. Part number for Optional Discharge Flange Kit: 38647 (Discharge) Ports, replacement pump end only without a Motor. This self priming pump contains a well-greased seal which allows the pump to operate in a dry run condition, increasing hours of running time while protecting the seal. Outfitted with 316 stainless steel, this pump can tolerate caustic liquids. With that being stated, the FLOMAX 15 316 SS self priming centrifugal pump is perfect for any application. A FLOMAX 15, 316 SS PumPAK is a fully assembled and run tested pump end that can be easily coupled to a number of drivers such as hydraulic motors, 184TC and 215C frame motors and gas engines. A bearing pedestal is also available for T-frame motor or belt drive. Standard features include a 3 NPT 150# class flat flange on the suction of the pump, a Viton flapper, a 3 SAE 4-bolt flat face discharge connection, stainless steel drive sleeve, stainless steel fasteners, renewable wear plate, and a semi-open dynamically balanced impeller. Options include a 5-blade stainless steel impeller and seals for all types of abrasive and/or corrosive services. The FLOMAX series of pumps are commonly used in Industrial, OEM, Agricultural and Marine applications, such as: Bilge Pumps, Auxiliary Fire Pumps, Ballast Transfer Pumps, Washdown Pumps, Fertilizer and Pesticide Pumps, Applicators and Sprayers, Blending Pumps, Nurse Tanks, Bulk Transfer Pumps and much more.

Features :

Pump Body:
Stainless Steel
Impeller:
6.0 inch Diameter
Port Size:
Inlet Port is 3 inch NPT ANSI 150 lb. class flat flange with Viton flapper (Suction) / 3 inch ANSI 4-bolt flange connection, Optional 3 inch NPT ANSI 150 lb. Flange Available. Part number for Optional Discharge Flange Kit: 38647 (Discharge), Discharge Port is 3 inch NPT ANSI 150 lb. class flat flange with Viton flapper (Suction) / 3 inch ANSI 4-bolt flange connection, Optional 3 inch NPT ANSI 150 lb. Flange Available. Part number for Optional Discharge Flange Kit: 38647 (Discharge).
Motor Specs :
Horsepower.

Applications

Typical applications for the Gardner Denver MP model 34792 are Agricultural, Industrial, Marine, OEM.
