MP # 34609 Chemflo 8 Pedestal pump end only

MP Pump 34609

MP # 34609

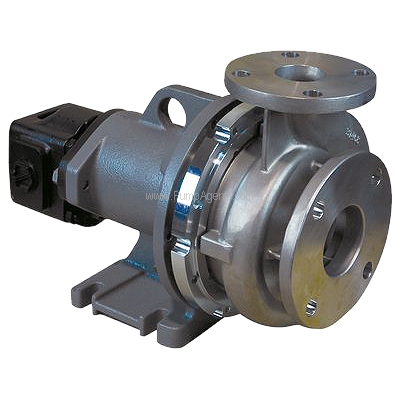

MP catalog # 34609, Chemflo 8 series Pedestal Centrifugal Chemical Pump end only, bare shafted, Stainless Steel construction, 7.0 inch diameter impeller. Inlet Port is 3 inch, Discharge Port is 1-1/2 inch 150 lb. ANSI flange.

Price : $ 4177.52

Qty :

Same Day (1 in stock)



Product Information :

The MP 34609 is a Stainless Steel Chemflo 8 series Pedestal Centrifugal Chemical Pump end only, bare shafted, with 7.0 inch Diameter Impeller, 3 inch by 1-1/2 inch 150 lb. ANSI flange Ports, replacement pump end only without a Motor. The enclosed impeller design for this chemical pump leads to higher heads and efficiencies than a semi-open impeller. Wetted components made out of 316 stainless steel provide protection against different chemical compounds being pumped. Each CHEMFLO 8 Pedestal end suction centrifugal pump comes with several mechanical seal options to fit your specific needs. The ChemFlo 8 pumps utilize an enclosed impeller designed for achieving higher heads and efficiencies than a standard semi-open impeller. Multiple impeller trims allow the ChemFlo 8 to meet most duty points up to 350 GPM and total head up to 290 feet. Several mechanical seal options are available in addition to the standard type 2100 carbon / ceramic / Viton mechanical seal. All wetted components are 316 investment cast stainless steel providing superior corrosion resistance when pumping chemical compounds. The Chemflo 8 pedestal uses a pump end (PumPAK) design that is interchangeable with 145TC, 184TC, 215TC, 256TC, or 286TSC electric motors. If ordering a PumPAK with a 145TC please note that the electric motor must have a base.

Features :

Pump Body:
Stainless Steel
Impeller:
7.0 inch Diameter
Port Size:
Inlet Port is 3 inch, Discharge Port is 1-1/2 inch 150 lb. ANSI flange.
Motor Specs :
Horsepower.

Applications

Typical applications for the Gardner Denver MP model 34609 are Agricultural, Commercial, Industrial, Marine, OEM.
