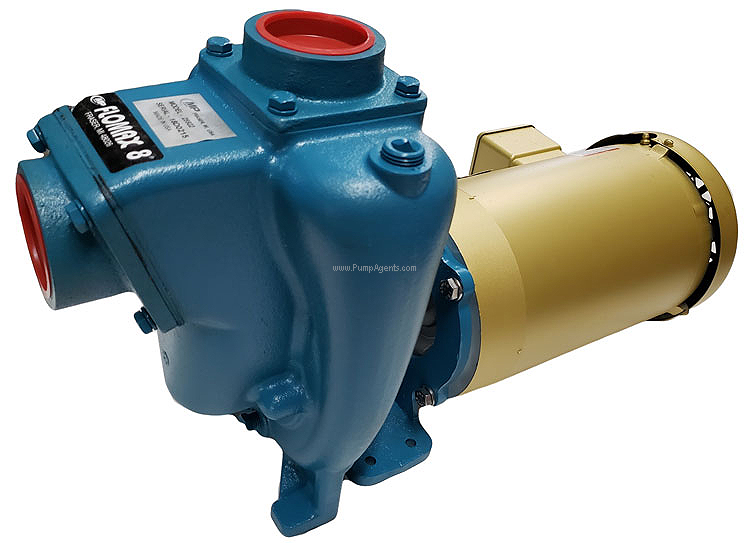

MP # 34603 Flomax 8 Pump and Motor unit 1-1/2 HP

MP Pump 34603

MP # 34603

MP catalog # 34603, Flomax 8 series Self Priming Centrifugal Pump and Motor unit, Cast Iron construction, 4.1 inch diameter impeller, T-21 Mechanical seal with a single convolution. Motor is 1-1/2 Horsepower, 230/460 Volts, Three Phase. Inlet Port is 2 inch, Discharge Port is 2 inch.

Price : $ 1442.54

Qty :

Same Day (1 in stock)



Product Information :

The MP 34603 is a Cast Iron Flomax 8 series Self Priming Centrifugal Pump and Motor unit, with 4.1 inch Diameter Impeller, T/21, a single convolution Mechanical Seal, 2 inch by 2 inch Ports, close coupled to a 1-1/2 Horsepower, 230/460 Volts, Three Phase Motor. Once primed, the FLOMAX 8 self priming centrifugal pump is able to keep a full column of liquid in the suction line with a flapper valve. Up to 25 feet of lift can be created from the technology found inside this self priming pump. The centrifugal pump contains stainless steel fasteners and drive shaft; making it perfect for every application inside the industrial, OEM, agricultural and marine industries. A FLOMAX 8 PumPAK is a fully assembled and run tested pump end that can be easily coupled to a number of drivers such as hydraulic motors, 56C and 145TC frame motors and gas engines. A bearing pedestal is also available for T-frame motor or belt drive. Standard features include stainless steel drive sleeve, stainless steel fasteners, renewable wearplate, and a semi-open dynamically balanced impeller. The FLOMAX series of pumps are commonly used in Industrial, OEM, Agricultural and Marine applications, such as: Bilge Pumps, Auxiliary Fire Pumps, Ballast Transfer Pumps, Washdown Pumps, Fertilizer and Pesticide Pumps, Applicators and Sprayers, Blending Pumps, Nurse Tanks, Bulk Transfer Pumps and much more.

Features :

Pump Body:
Cast Iron
Impeller:
4.1 inch Diameter
Shaft Seal:
T-21 Mechanical seal with a single convolution
Port Size:
Inlet Port is 2 inch, Discharge Port is 2 inch.
Motor Specs :
1-1/2 Horsepower, 230/460 Volts, Three Phase.

Applications

Typical applications for the Gardner Denver MP model 34603 are Agricultural, Industrial, Marine, OEM.
