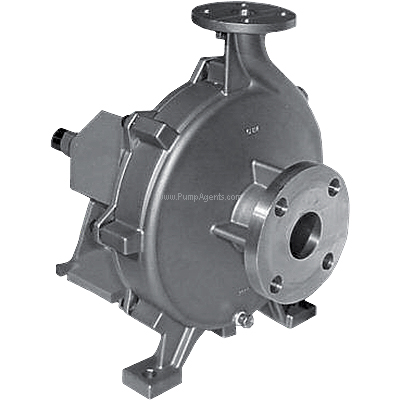

MP # 34549 Chemflo 9 Pedestal pump end only

MP Pump 34549

MP # 34549

MP catalog # 34549, Chemflo 9 series Pedestal Centrifugal Chemical Pump end only, bare shafted, Stainless Steel construction, 9.95 inch diameter impeller, Teflon/Carbon/Ceramic T-9 Mechanical seal Mechanical seal for chemical duty. Inlet Port is 2 inch, Discharge Port is 1 inch 150 lb. ANSI flange.

Price : $ 4894.84

Qty :

2 Weeks (0 in stock)



Product Information :

The MP 34549 is a Stainless Steel Chemflo 9 series Pedestal Centrifugal Chemical Pump end only, bare shafted, with 9.95 inch Diameter Impeller, Teflon/Carbon/Ceramic T/9 for chemical duty Mechanical Seal, 2 inch by 1 inch 150 lb. ANSI flange Ports, replacement pump end only without a Motor. When pumping toxic materials is required for your application, high grade stainless steel components are necessary. Utilizing all wetted 316 stainless steel throughout its centrifugal design, this heavy duty chemical pump easily withstands the harmful effects of hazardous compounds. The CHEMFLO 9 Pedestal end suction centrifugal pump also comes with a variety of mechanical seals to fit your every need. The ChemFlo 9 pumps utilize an enclosed impeller designed for achieving higher heads and efficiencies than a standard semi-open impeller. Multiple impeller trims allow the ChemFlo 9 to meet most duty points up to 270 GPM and total head up to 460 feet. Several mechanical seal options are available in addition to the standard type 2100 carbon / ceramic / Viton mechanical seal. All wetted components are 316 investment cast stainless steel providing superior corrosion resistance when pumping chemical compounds. The Chemflo 9 pedestal uses a pump end (PumPAK) design that is interchangeable with 145TC, 184TC, 215TC, 256TC, 286TSC, or 324TS electric motors. If ordering a PumPAK with a 145TC please note that the electric motor must have a base.

Features :

Pump Body:
Stainless Steel
Impeller:
9.95 inch Diameter
Shaft Seal:
Teflon/Carbon/Ceramic T-9 Mechanical seal Mechanical seal for chemical duty
Port Size:
Inlet Port is 2 inch, Discharge Port is 1 inch 150 lb. ANSI flange.
Motor Specs :
Horsepower.

Applications

Typical applications for the Gardner Denver MP model 34549 are Agricultural, Commercial, Industrial, Marine, OEM.
