MP # 33786 HTO 300 Pump and Motor unit 10 HP

MP Pump 33786

MP # 33786

MP catalog # 33786, HTO 300 series Hot Oil Centrifugal Pump and Motor unit, Ductile Iron construction, Ductile Iron Impeller, 5.7 inch diameter impeller, Silicon Carbide/Tungsten Mechanical seal. Motor is 10 Horsepower, 230/460 Volts, Three Phase, TEFC (Totally Enclosed Fan Cooled). Inlet Port is 3 inch, Discharge Port is 2-1/2 inch ANSI 150 lb. flat flange.

Price : $ 6335.80

Qty :

2 Weeks (0 in stock)



Product Information :

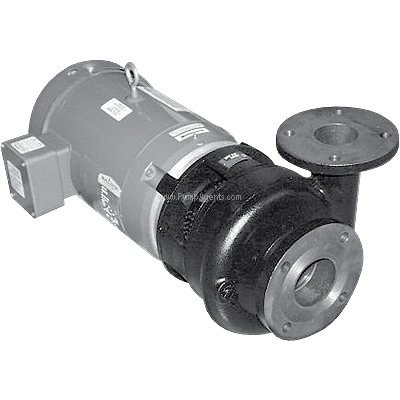

The MP 33786 is a Ductile Iron HTO 300 series Hot Oil Centrifugal Pump and Motor unit, with Ductile Iron Impeller 5.7 inch Diameter Impeller, Silicon Carbide/Tungsten Mechanical Seal, 3 inch by 2-1/2 inch ANSI 150 lb. flat flange Ports, close coupled to a 10 Horsepower, 230/460 Volts, Three Phase, TEFC (Totally Enclosed Fan Cooled) Motor. Versatile enough to be mounted vertically or horizontally, this end suction centrifugal pump was created to operate at high temperatures up to 650 F (343 C). Applications for this hot oil pump include the food, processing, chemical, and plastic industries. Internal technology utilizes ambient air as its cooling source to reduce the operating temperature of the HTO 300. An electric motor for this hot oil pump is optional.

Features :

Pump Body:
Ductile Iron
Impeller:
Ductile Iron Impeller, 5.7 inch Diameter
Shaft Seal:
Silicon Carbide/Tungsten Mechanical seal
Port Size:
Inlet Port is 3 inch, Discharge Port is 2-1/2 inch ANSI 150 lb. flat flange.
Motor Specs :
10 Horsepower, 230/460 Volts, Three Phase, TEFC (Totally Enclosed Fan Cooled).

Applications

Typical applications for the Gardner Denver MP model 33786 are Industrial, OEM.
