MP # 33709 HTO 300 Pump and Motor unit 15 HP

MP Pump 33709

MP # 33709

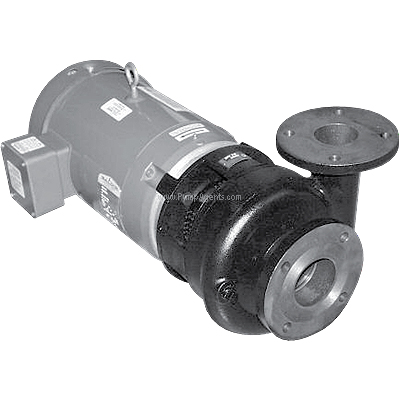

MP catalog # 33709, HTO 300 series Hot Oil Centrifugal Pump and Motor unit, Ductile Iron construction, 6.62 inch diameter impeller. Motor is 15 Horsepower, 230/460 Volts, Three Phase, TEFC (Totally Enclosed Fan Cooled). Inlet Port is 3 inch, Discharge Port is 2-1/2 inch ANSI 150 lb. flat flange.

Price : $ 7397.56

Qty :

2 Weeks (0 in stock)



Product Information :

The MP 33709 is a Ductile Iron HTO 300 series Hot Oil Centrifugal Pump and Motor unit, with 6.62 inch Diameter Impeller, 3 inch by 2-1/2 inch ANSI 150 lb. flat flange Ports, close coupled to a 15 Horsepower, 230/460 Volts, Three Phase, TEFC (Totally Enclosed Fan Cooled) Motor. Versatile enough to be mounted vertically or horizontally, this end suction centrifugal pump was created to operate at high temperatures up to 650 F (343 C). Applications for this hot oil pump include the food, processing, chemical, and plastic industries. Internal technology utilizes ambient air as its cooling source to reduce the operating temperature of the HTO 300. An electric motor for this hot oil pump is optional.

Features :

Pump Body:
Ductile Iron
Impeller:
6.62 inch Diameter
Port Size:
Inlet Port is 3 inch, Discharge Port is 2-1/2 inch ANSI 150 lb. flat flange.
Motor Specs :
15 Horsepower, 230/460 Volts, Three Phase, TEFC (Totally Enclosed Fan Cooled).

Applications

Typical applications for the Gardner Denver MP model 33709 are Industrial, OEM.
