MP # 33613 Flomax 30 Pedestal pump end only

MP Pump 33613

MP # 33613

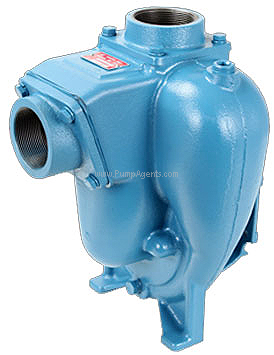

MP catalog # 33613, Flomax 30 series Pedestal Self Priming Centrifugal Pump end only, bare shafted, Cast Iron construction, 6.75 inch diameter impeller, Double seal. Inlet Port is 3 inch, Discharge Port is 3 inch NPT.

Price : $ 5575.82

Qty :

2 Weeks (0 in stock)



Product Information :

The MP 33613 is a Cast Iron Flomax 30 series Pedestal Self Priming Centrifugal Pump end only, bare shafted, with 6.75 inch Diameter Impeller, Double seal, 3 inch by 3 inch NPT Ports, replacement pump end only without a Motor. Standard features on this self priming pump include stainless steel fasteners and renewable wear plates. The FLOMAX 30 self priming centrifugal pump can generate enough power to lift liquids up to 25 feet. To keep a full column of liquid in the suction line and to ensure this machine keeps running efficiently, a flapper valve has been installed. A FLOMAX 30 PumPAK is a fully assembled and run tested pump end that can be easily coupled to a number of drivers such as 182TC to 256TC frame motors and gas engines. A bearing pedestal is also available for T-frame motor or belt drive. Standard features include stainless steel drive sleeve, stainless steel fasteners, renewable wear plate, and a semi-open dynamically balanced impeller. The FLOMAX series of pumps are commonly used in Industrial, OEM, Agricultural and Marine applications, such as: Bilge Pumps, Auxiliary Fire Pumps, Ballast Transfer Pumps, Washdown Pumps, Fertilizer and Pesticide Pumps, Applicators and Sprayers, Blending Pumps, Nurse Tanks, Bulk Transfer Pumps and much more.

Features :

Pump Body:
Cast Iron
Impeller:
6.75 inch Diameter
Shaft Seal:
Double seal
Port Size:
Inlet Port is 3 inch, Discharge Port is 3 inch NPT.
Motor Specs :
Horsepower.

Applications

Typical applications for the Gardner Denver MP model 33613 are Agricultural, Industrial, Marine, OEM.
