MP # 33010 Chemflo 6 Pump Pack pump end only

MP Pump 33010

MP # 33010

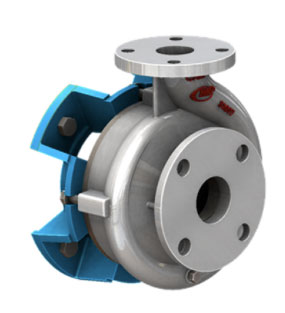

MP catalog # 33010, Chemflo 6 series Centrifugal Chemical Pump Pack pump end only for mounting on a motor, Stainless Steel construction, 5.87 inch diameter impeller. Inlet Port is 3 inch, Discharge Port is 2 inch 150 lb. ANSI flange.

Price : $ 2788.70

Qty :

Same Day (1 in stock)



Product Information :

The MP 33010 is a Stainless Steel Chemflo 6 series Centrifugal Chemical Pump Pack pump end only for mounting on a motor, with 5.87 inch Diameter Impeller, 3 inch by 2 inch 150 lb. ANSI flange Ports, replacement pump end only without a Motor. Motors for this chemical pump include the 145TC, 184TC, and 215TC. The CHEMFLO 6 CC uses stainless steel parts to keep your pump running healthy and efficiently, ensuring no internal corrosion results. The end suction pump comes standard with a wide variety of mechanical seals to suit any application. The ChemFlo 6 pumps utilize an enclosed impeller designed for achieving higher heads and efficiencies than a standard semi-open impeller. Multiple impeller trims allow the ChemFlo 6 to meet most duty points up to 450 GPM and total head up to 157 feet. Several mechanical seal options are available in addition to the standard type 2100 carbon / ceramic / Viton mechanical seal. ChemFlo 6 pumps are offered in two configurations, pump (with motor) and PumPAK (without motor) versions. Motors available are 145TC, 184TC, and 215TC. If ordering a PumPAK please note that the electric motor must have a base.

Features :

Pump Body:
Stainless Steel
Impeller:
5.87 inch Diameter
Port Size:
Inlet Port is 3 inch, Discharge Port is 2 inch 150 lb. ANSI flange.
Motor Specs :
Horsepower.

Applications

Typical applications for the Gardner Denver MP model 33010 are Agricultural, Commercial, Industrial, Marine, OEM.
