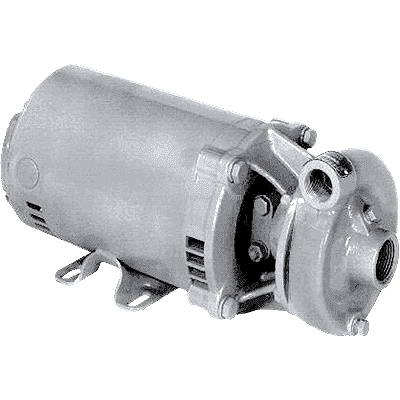

MP # 31387 Series 30 Pump and Motor unit 1 HP

MP Pump 31387

MP # 31387

MP catalog # 31387, Series 30 End Suction Centrifugal Pump and Motor unit, Bronze construction, Bronze Impeller, 2.5 inch diameter impeller. Motor is 1 Horsepower, 230/460 Volts, Three Phase, TEFC (Totally Enclosed Fan Cooled). Inlet Port is 1 inch, Discharge Port is 3/4 inch.

Price : $ 1881.78

Qty :

Same Day (1 in stock)



Product Information :

The MP 31387 is a Bronze Series 30 End Suction Centrifugal Pump and Motor unit, with Bronze Impeller 2.5 inch Diameter Impeller, 1 inch by 3/4 inch Ports, close coupled to a 1 Horsepower, 230/460 Volts, Three Phase, TEFC (Totally Enclosed Fan Cooled) Motor. Series 30 end suction centrifugal pumps are close coupled to standard NEMA "C" face motors. This industrial liquid pump is available in cast iron, bronze, or aluminum. All fasteners are stainless steel to prolong the life of the pump by reducing corrosion. Agricultural, commercial, industrial, and OEM industries are where these end suction centrifugal pumps can be applied. All fasteners are stainless steel to reduce corrosion. Impellers are dynamically balanced to improve efficiency and bearing life. Standard carbon / ceramic / Viton mechanical seal is self-adjusting and corrosion resistant to handle almost any liquid. Completely tested "Wet End" PumPAKs are available without motors. The MP PumPAK can be mounted to standard NEMA C frame motors in just minutes.

Features :

Pump Body:
Bronze
Impeller:
Bronze Impeller, 2.5 inch Diameter
Port Size:
Inlet Port is 1 inch, Discharge Port is 3/4 inch.
Motor Specs :
1 Horsepower, 230/460 Volts, Three Phase, TEFC (Totally Enclosed Fan Cooled).

Applications

Typical applications for the Gardner Denver MP model 31387 are Agricultural, Commercial, Industrial, OEM.
