MP # 30713 Chemflo 3 Pump and Motor unit 2 HP

MP Pump 30713

MP # 30713

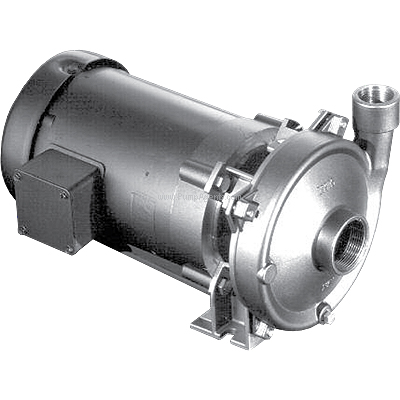

MP catalog # 30713, Chemflo 3 series Centrifugal Chemical Pump and Motor unit, minus base, Stainless Steel construction, 3.75 inch diameter impeller. Motor is 2 Horsepower, 115/230 Volts, Single Phase. Inlet Port is 2 inch, Discharge Port is 1-1/2 inch NPT.

Price : $ 2322.60

Qty :

Same Day (1 in stock)



Product Information :

The MP 30713 is a Stainless Steel Chemflo 3 series Centrifugal Chemical Pump and Motor unit, minus base, with 3.75 inch Diameter Impeller, 2 inch by 1-1/2 inch NPT Ports, close coupled to a 2 Horsepower, 115/230 Volts, single phase Motor. Both electric and hydraulic motors can be close coupled to the CHEMFLO 3 CC end suction centrifugal pump. Investment cast 316 stainless steel components help maintain the efficiency levels of the pump, reducing the harsh effects of certain chemical compounds. A CA 958 nickel aluminum bronze drive sleeve also protects against corrosion on this chemical pump. The ChemFlo 3 pumps utilize a semi-open impeller design to allow for passage of larger solid sizes than similar sized enclosed impellers. Several seal options are available in additon to the standard type 2100 carbon / ceramic / Viton mechanical seal. ChemFlo 3 pumps are offered in two configurations, pump (with motor) and PumPAK (without motor) versions. Electric and hydraulic motors can be close coupled to ChemFlo 3 pumps or pedestal mounted versions are also available for long coupling. Further expanding the versatility of the ChemFlo series is the CFB 3 pump, a ChemFlo 3 in NiBrAl material. All wetted parts are produced in CA 958 nickel aluminum bronze including the drive sleeve to maximize corrosion protection in seawater applications. If ordering a pumpak with a 145TC please note that the electric motor must have a base.

Features :

Pump Body:
Stainless Steel
Impeller:
3.75 inch Diameter
Port Size:
Inlet Port is 2 inch, Discharge Port is 1-1/2 inch NPT.
Motor Specs :
2 Horsepower, 115/230 Volts, Single Phase.

Applications

Typical applications for the Gardner Denver MP model 30713 are Agricultural, Commercial, Industrial, Marine, OEM.
