MP # 30328 Chemflo 1 Pedestal pump end only

MP Pump 30328

MP # 30328

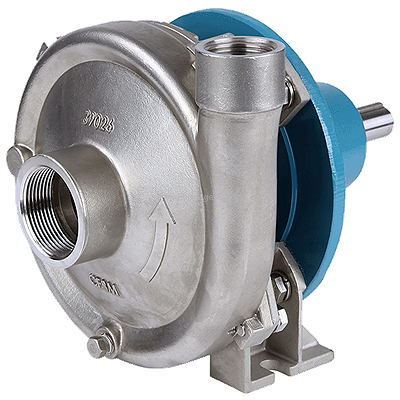

MP catalog # 30328, Chemflo 1 series Pedestal Centrifugal Chemical Pump end only, bare shafted, Stainless Steel construction, 6.0 inch diameter impeller. Inlet Port is 1-1/2 inch, Discharge Port is 1 inch NPT.

Price : $ 1346.95

Qty :

Same Day (2 in stock)



Product Information :

The MP 30328 is a Stainless Steel Chemflo 1 series Pedestal Centrifugal Chemical Pump end only, bare shafted, with 6.0 inch Diameter Impeller, 1-1/2 inch by 1 inch NPT Ports, replacement pump end only without a Motor. Capable of reaching flows up to 100 GPM and 140 of head, the CHEMFLO 1-Pedestal end suction centrifugal pump was designed to be applied in multiple applications. Offered with or without a motor, the investment cast 316 stainless steel components keep this chemical pump running healthy when dealing with toxic materials. ChemFlo 1 pumps utilize a semi-open impeller design to allow for passage of larger solid sizes and a totally enclosed impeller to meet high efficiency standards. Several seal options are available in addition to the standard type 2100 carbon / ceramic / Viton mechanical seal. ChemFlo 1 pumps are offered in two configurations, pump (with motor) and PumPAK (without motor) versions. Motors available are 56C and 145TC. If ordering a PumPAK for a 145TC motor please note that the electric motor must have a base. Other drive options are available. Further expanding the versatility of the ChemFlo series is the CFB 1 pump, a ChemFlo 1 in NiBrAl material. All wetted parts are produced in CA 958 nickel aluminum bronze including the drive sleeve to maximize corrosion protection in seawater applications.

Features :

Pump Body:
Stainless Steel
Impeller:
6.0 inch Diameter
Port Size:
Inlet Port is 1-1/2 inch, Discharge Port is 1 inch NPT.
Motor Specs :
Horsepower.

Applications

Typical applications for the Gardner Denver MP model 30328 are Agricultural, Commercial, Industrial, Marine, OEM.
