MP # 23905 Series 30 Pump and Motor unit 3/4 HP

MP Pump 23905

MP # 23905

MP catalog # 23905, Series 30 End Suction Centrifugal Pump and Motor unit, Bronze construction, 3.25 inch diameter impeller. Motor is 3/4 Horsepower, 115/230 Volts, Single Phase. Inlet Port is 1 inch, Discharge Port is 3/4 inch.

Price : $ 1830.43

Qty :

Same Day (1 in stock)



Product Information :

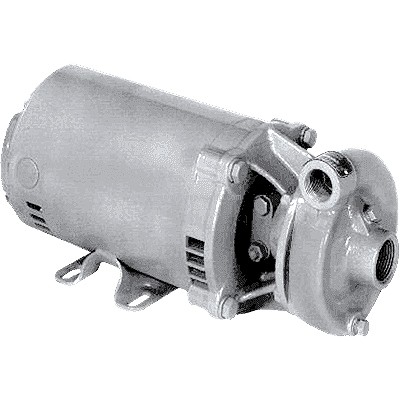

The MP 23905 is a Bronze Series 30 End Suction Centrifugal Pump and Motor unit, with 3.25 inch Diameter Impeller, 1 inch by 3/4 inch Ports, close coupled to a 3/4 Horsepower, 115/230 Volts, single phase Motor. Series 30 end suction centrifugal pumps are close coupled to standard NEMA "C" face motors. This industrial liquid pump is available in cast iron, bronze, or aluminum. All fasteners are stainless steel to prolong the life of the pump by reducing corrosion. Agricultural, commercial, industrial, and OEM industries are where these end suction centrifugal pumps can be applied. All fasteners are stainless steel to reduce corrosion. Impellers are dynamically balanced to improve efficiency and bearing life. Standard carbon / ceramic / Viton mechanical seal is self-adjusting and corrosion resistant to handle almost any liquid. Completely tested "Wet End" PumPAKs are available without motors. The MP PumPAK can be mounted to standard NEMA C frame motors in just minutes.

Features :

Pump Body:
Bronze
Impeller:
3.25 inch Diameter
Port Size:
Inlet Port is 1 inch, Discharge Port is 3/4 inch.
Motor Specs :
3/4 Horsepower, 115/230 Volts, Single Phase.

Applications

Typical applications for the Gardner Denver MP model 23905 are Agricultural, Commercial, Industrial, OEM.
