Johnson model # CM90P7-1-BL-13.6V-D38 - Mag Drive Circulation Pump
Johnson # CM90P7-1-BL-13.6V-D38

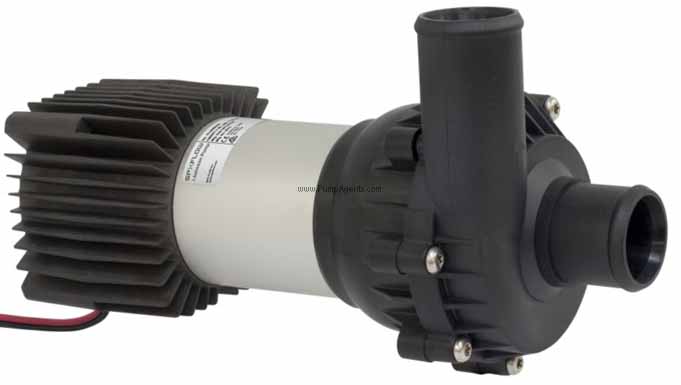

Johnson catalog # CM90P7-1-BL-13.6V-D38, Magnetically Driven DC Circulation Pump with Brushless Motor, IP67 rated, Plastic PPA construction, Plastic PA 12 impeller, Stainless Steel Shaft. Motor is 125 Watts, 12 Volts DC. Inlet Port is 1-1/2 inch Hose Inlet, Discharge Port is 1-1/2 inch Hose Outlet.
Price : $ 814.03
Product Information :
The Johnson CM90P7-1-BL-13.6V-D38 is a Plastic PPA Magnetically Driven DC Circulation Pump with Brushless Motor, IP67 rated, with Plastic PA 12 Impeller, 1-1/2 inch Hose Inlet by 1-1/2 inch Hose Outlet Ports, coupled to a 125 Watts, 12 Volt DC Motor. This pump is a Magnetically driven Direct Current (DC) powered Circulation Pump. This Magnetically driven pump has no seal, so it has no leakage. It has a long life expectancy and can withstand dry running for up to 30 minutes. The motor has a higher IP classification of IP67, which means it will reliably function in the toughest environments, water-proof as well as dust-proof, and withstands powerful water jets used during maintenance, and will even withstand submersion for up to 30 minutes. The motor is a brush-less permanent magnet ball bearing mounted motor which offers long life expectancy, and it has potted electronics in case electronics are submerged in compound being pumped, and has a conformal coating on the electric components. The motor has superior permanently lubricated bearings which allows continual operation of 20,000 plus hours. This unit adheres to the UN R10 - EMC regulation and complies with relevant EMC regulations and directives. This means increased reliability, reduced warranty issues and service costs. This high quality circulation pump was designed to meet the demands for heating and cooling systems on boats, trains, buses, commercial vehicles, recreational vehicles and motor-homes. Do not pump gasoline, petrol or fluids with a flash point below 37 degrees C. The maximum temperature for this pump is Minimum of minus -40 degrees F to Maximum of plus +212 degree F degrees F.
WEIGHT : The Johnson CM90P7-1-BL-13.6V-D38 weighs 6.6 lbs. Lbs.
Features :
Applications
Typical applications for the CM90P71BL13.6VD38 are circulation of water, glycol and antifreeze in heating system for cars, buses, trains and boats, recreation vehicles, etc. It is also typically used in circulation for cooling fresh water in vehicles. This is a good allround circulation pump wherever selfpriming is not essential. This high performance circulation pump has been designed for a significantly longer service life, compared to pumps with a traditional brush motor. The pump is electronically controlled and fitted with a brushless electric motor with fewer wear parts. The motor has a built in temperature limitation that will shut down the motor when the operating temperature is too high. When the motor reaches an acceptable temperature level it will start again. This pump is a normalpriming centrifugal pump and should be mounted in a manner that ensures that they are always flooded or else be primed before being switched on. The pump should not be run dry, even if it stands a shorter time of dry running. The maximum dry running without liquid is 30 minutes, but note that dry running will always cause increased wear. The direction of rotation of the pump is clockwise, viewed from the front towards the body see rotation arrow. Use full size hose diameter at the inlet. Reduced hose diameter at inlet gives reduced performance and risk of cavitation which can cause damage in the pump. In closed systems or wherever else selfpriming is not required, this pump is an allround pump that distinguishes itself for its dependability, capacity and long service life. The pump has a magnetic drive, which means that no shaft seal is necessary, as the motor shaft does not penetrate the pump house. With no mechanical seal, longer service life is assured. Heat flanges on both the motor and the pump also increase service life as they dissipate heat from the unit, which can pump liquids efficiently at a very wide range of temperatures. The CM90 BL also features integral thermal overload protection and is EMC approved according to EN 55014 standards. The CM90 BL magnetic driven centrifugal pump combines a high flow rate with very low electricity consumption, making it ideal for vehicular heating and cooling systems. IMPORTANT Do not pump gasoline, solvents, thinner, highly concentrated or organic acids.If corrosive fluids must be handled, pump life will be prolonged if flushed with water after each use or after each work day.
