Johnson # 10-24664-02 Mag Drive Circulation Pump 4 GPM 125 Watts 125 Watts
Johnson # 10-24664-02

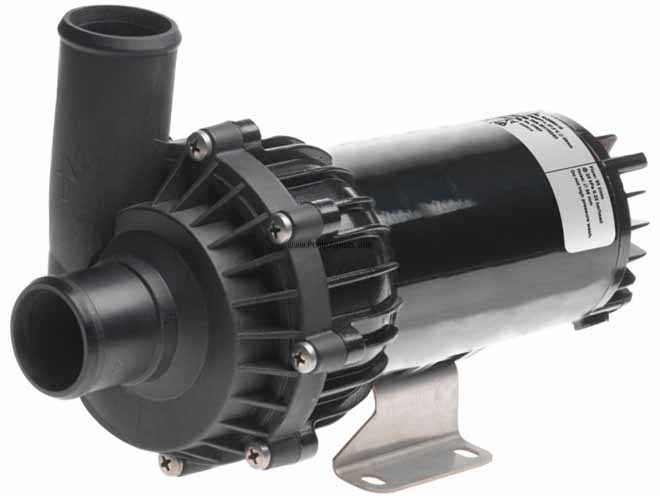

Johnson catalog # 10-24664-02, Magnetically Driven DC Circulation Pump with enclosed Motor, IP67 rated, 23.7 GPM flow, Plastic glass-fiber reinforced PPA construction, Plastic PA 12 impeller, Stainless Steel Shaft. Motor is 125 Watts, 24 Volts DC. Inlet Port is 1-1/2 inch Hose Inlet, Discharge Port is 1-1/2 inch Hose Outlet.
Price : Contact Us
Product Information :
The Johnson 10-24664-02 is a Plastic glass-fiber reinforced PPA Magnetically Driven DC Circulation Pump with enclosed Motor, IP67 rated, 23.7 GPM flow, with Plastic PA 12 Impeller, 1-1/2 inch Hose Inlet by 1-1/2 inch Hose Outlet Ports, coupled to a 125 Watts, 24 Volts DC Motor. This pump is a Magnetically driven Direct Current (DC) powered Circulation Pump. This Magnetically driven pump has no seal, so it has no leakage. It has a long life expectancy and can withstand dry running for up to 30 minutes. The motor has a higher IP classification of IP67, which means it will reliably function in the toughest environments, water-proof as well as dust-proof, and withstands powerful water jets used during maintenance, and will even withstand submersion for up to 30 minutes. The motor is a permanent magnet, ball bearing mounted motor, designed for continuous operation, and has superior permanently lubricated bearings which allows continual operation of 10,000 plus hours. This unit adheres to the UN R10 - EMC regulation and complies with relevant EMC regulations and directives. This means increased reliability, reduced warranty issues and service costs. This high quality circulation pump was designed to meet the demands for heating and cooling systems on boats, trains, buses, commercial vehicles, recreational vehicles and motor-homes. Small, compact, and specifically designed for circulation duties, this continuously rated pump provides trouble-free operation. Do not use this pump for petrol, petroleum products, or fluids with a flashpoint below 37 degrees C. The maximum temperature for this pump is Minimum of minus -40 degrees F to Maximum of plus +212 degree F degrees F.
WEIGHT : The Johnson 10-24664-02 weighs 8.6 lbs.
Features :
Applications
Typical applications for the 102466402 are circulation of water, glycol and antifreeze in heating system for cars, buses, trains and boats, recreation vehicles, etc. It is also typically used in circulation for cooling fresh water in vehicles. This is a good allround circulation pump wherever selfpriming is not essential. Heat flanges on both the motor and the pump also increase service life as they dissipate heat from the unit, which can pump liquids efficiently at a very wide range of temperatures. The CM90 also features integral thermal overload protection and is EMC approved according to EN 55014 standards.The CM90 magnetic driven centrifugal pump combines a high flow rate with very low electricity consumption, making it ideal for vehicular heating and cooling systems. This pump is a normalpriming centrifugal pump and should be mounted in a manner that ensures that they are always flooded or else be primed before being switched on. The pump should not be run dry, even if it stands a shorter time of dry running. The maximum dry running without liquid is 30 minutes, but note that dry running will always cause increased wear. The direction of rotation of the pump is clockwise, viewed from the front towards the body see rotation arrow. Use full size hose diameter at the inlet. Reduced hose diameter at inlet gives reduced performance and risk of cavitation which can cause damage in the pump.
