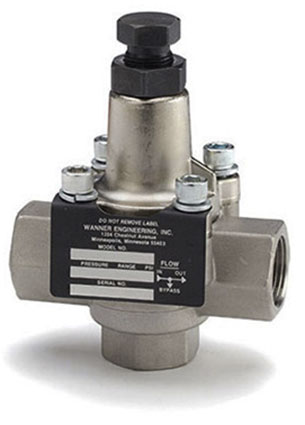

Hydra-cell Pump # C24AASVSSNH Relief Valve

The Hydracell Pump C24AASVSSNH is a Relief Valve, 5-40 GPM Valve Configuration, 75-500 psi Pressure Range, 316 Stainless Steel Body/Top, Viton/Teflon Seals/Back-up Seals, 17-4 HT Stainless Steel Valve Seats, 17-4 HT Stainless Steel Plungers. This pressure regulating valve bypasses system fluid to prevent excess system pressure. When a system discharge is completely closed such as a closed spray gun, closed valved or plugged nozzle the Hydra-Cell regulating valve bypasses the total system fluid flow. They also balance system pressure for multiple-gun operations. The Hydra-Cell Valve design is simple: a tapered plunger with a valve seat. When excess pressure overcomes the adjustable spring pressure on the plunger, the plunger lifts off the seat, allowing fluid to bypass and reduce system pressure. When a Hydra-Cell regulating valve is mounted in the discharge line, its modified flow-through design reduces wear on the plunger and seat. Baffles on either side of the plunger and seat extend life by directing the flow around these internal components. For service, simply remove the top of the body and replace the worn internal components. This valve can be serviced in place without removing any fittings or plumbing.
