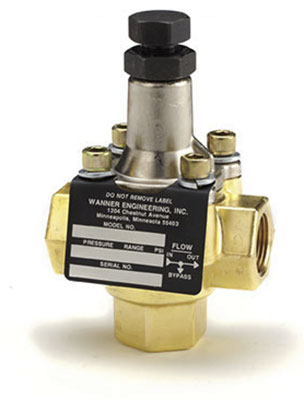

Hydra-cell Pump # C23ABBVSSJG Relief Valve Brass

The Hydracell Pump C23ABBVSSJG is a Relief Valve, 3-20 GPM Valve Configuration, 500-1000 psi Pressure Range, with Brass Body/Top, Viton/Teflon Seals/Back-up Seals, 17-4 HT Stainless Steel Valve Seats, and 17-4 HT Stainless Steel Plungers. This pressure regulating valve bypasses system fluid to prevent excess system pressure. When a system discharge is completely closed such as a closed spray gun, closed valved or plugged nozzle the Hydra-Cell regulating valve bypasses the total system fluid flow. They also balance system pressure for multiple-gun operations. The Hydra-Cell Valve design is simple: a tapered plunger with a valve seat. When excess pressure overcomes the adjustable spring pressure on the plunger, the plunger lifts off the seat, allowing fluid to bypass and reduce system pressure. When a Hydra-Cell regulating valve is mounted in the discharge line, its modified flow-through design reduces wear on the plunger and seat. Baffles on either side of the plunger and seat extend life by directing the flow around these internal components. For service, simply remove the top of the body and replace the worn internal components. This valve can be serviced in place without removing any fittings or plumbing.
