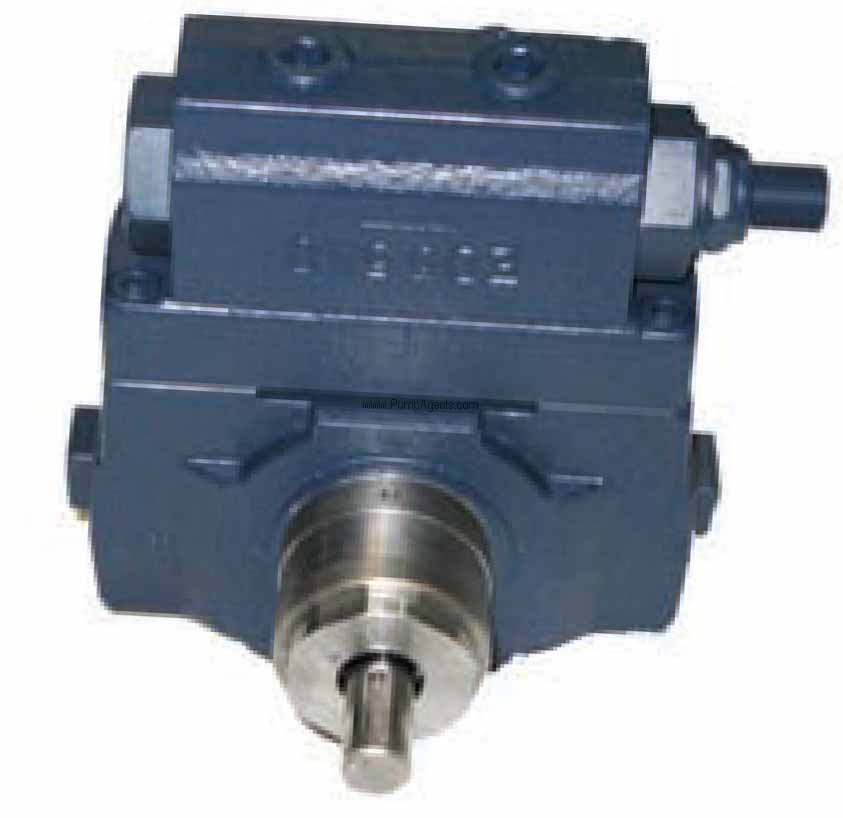

Haight # 6UR Ductile Iron Gear Pump

Haight Pump 6UR

Haight # 6UR

Haight catalog # 6UR, Ductile Iron Gear Pump, round hub Pump End Only less motor, 6 GPM rated, with built in Relief Valve, Ductile Iron Construction, Steel Shaft, Steel Gears, Iron Rotor and Bearings. Viton Lip Seal. Inlet Port is 3/4 inch NPT, Discharge Port is 3/4 inch NPT.

Price : $ 0.00

Qty :

2 Weeks (0 in stock)



Product Information :

The Haight 6UR is a Ductile Iron Gear Pump, round hub Pump End Only less motor, 6 GPM rated, with built in Relief Valve, Ductile Iron Construction, Viton Lip Seal, Steel Shaft, Steel Gears, Iron Rotor and Bearings. The standard construction materials of this pump are Ductile Iron Housing, Steel Shaft and Pinion Gears, Iron Rotor and Bearings, Buna N Lip Seals and Elastomers. These gear pumps have a Gear within a gear internal design and is very effective at handling a broad range of applications while operating at standard motor speeds, and reducing wear. Both of these operating characteristics play an important role in minimizing overall capital investment, and operating expenses. Compact rugged, and easy to maintain, these pumps are ideally suited to close-coupled mounting, or direct mounting to the motor. These pumps can operate at standard motor speeds, eliminating the need for pulleys/gear reducers. The involute gear design offers excellent suction characteristics, and minimizes noise and reduces internal bypassing It comes standard with self-lubricating gramix iron bearings, and easy to maintain Buna-N lip seals. The seals are installed in the UniverSeal design for simple and quick replacement, or change to alternate seal style. This is just the bare pump end, but there are optional mounting brackets which are designed for in-line mounting with standard NEMA frame size motors or bedplate mounting. These pumps are self-priming and will develop up to 27 inches of vacuum. Pumps will operate in either direction. However, the relief valve will only function in one direction. Relief valve components are symmetrical and can be installed to operate with either clockwise or counter-clockwise shaft rotation. The valve can function in either the return to suction mode, or return to tank mode. Available with three different tension springs, the relief valve operates smoothly and effectively over a broad range of setting values.

Features :

Pump Body:
Ductile Iron
Impeller:
Steel
Shaft Seal:
Viton Lip Seal
Port Size:
Inlet Port is 3/4 inch NPT, Discharge Port is 3/4 inch NPT.

Parts and Accessories for Haight model 6UR

Applications

Typical applications for the 6UR include pumping Petroleum Products, Machine Manufacturing Applications, Machine Tools, Hydraulic Equipment, Lubrication Systems, Diesel Engines, Food Processing, Restaurant Equipment, Misc. Chemical Applications, Glue and Ink, Soap and Detergent Products, Building and Highway Contractors, Paper Products Industries, Automotive Applications, Shipbuilding Applications, Beverage Applications, Aircraft Applications, and many Mining Applications.
