Groco # SE-4000 4 inch Large Engine Strainer with SST Basket

Groco Pump SE-4000

Groco # SE-4000

Groco catalog # SE-4000, SE Series 4 inch Large Engine Strainer with 304 SS Basket, Bronze Enclosure, Bronze construction. Inlet Port is 4 Inch NPT, Discharge Port is 4 Inch NPT.

Price : $ 6963.06

Qty :

2 Weeks (0 in stock)

Click Here for PARTS



Product Information :

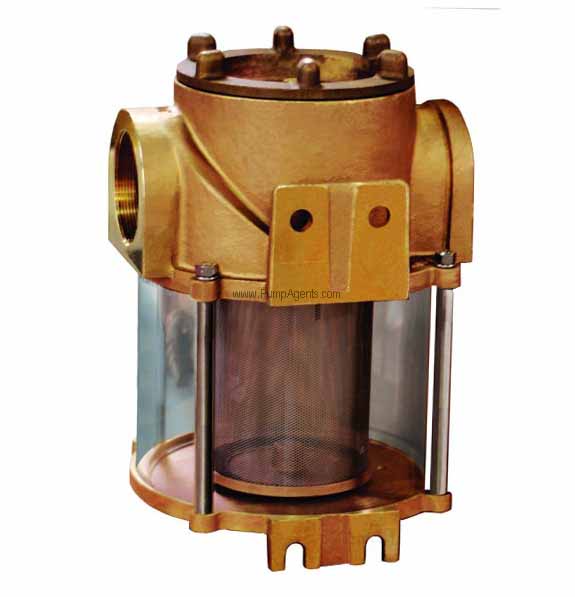

The Groco SE-4000 is a Bronze SE Series 4 inch Large Engine Strainer with 304 SS Basket, Bronze Enclosure, and 4 Inch NPT by 4 Inch NPT Ports. This strainer is for high-powered engines with 4 inch intakes, and has low restriction for maximum cooling water flow. Today's high power engines demand high flow capacity these raw water strainers are up for the job. For installation on the suction side of the plumbing system, and designed with minimal restriction and high flow output in mind, these strainers are the ideal solution for large engine cooling needs. These strainers are fitted with a crystal clear cast acrylic sight glass. It has an improved cylindrical filter basket, no inside tie rods, and the cap and basket have replaceable zinc anode protection. The cover unscrews for easy filter basket cleaning, and the O-rings seal all mating surfaces. This strainer can be converted to self-cleaning operation. The 304 Stainless Steel basket is standard with.077 inch holes (.125 inch and.188 inch hole sizes are optional).
WEIGHT : The Groco SE-4000 weighs 97 Lbs.

Features :

Pump Body:
Bronze
Port Size:
Inlet Port is 4 Inch NPT, Discharge Port is 4 Inch NPT.

Applications

General Installation Locate the strainer in a vertical orientation between the inlet seacock and the engine raw water pump in a location that will allow routing maintenance. Leave at least 12 inches above the top of the strainer for removal of the filter basket for cleaning.
