Groco # CP-20-24V Bronze Baitwell Pump and Motor unit
Groco # CP-20-24V

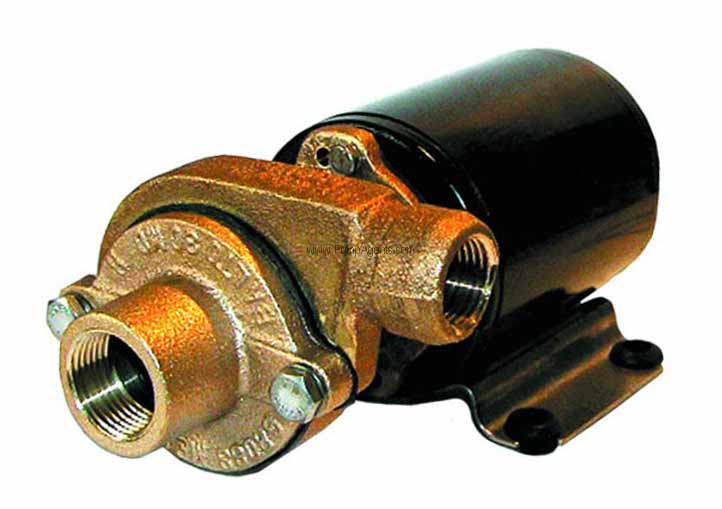

Groco catalog # CP-20-24V, Bronze Baitwell Pump and Motor unit, Bronze construction. Motor is 24 Volt DC. Inlet Port is 3/4 Inch NPT Inlet, Discharge Port is 1/2 Inch NPT Outlet.
Price : $ 343.65
Product Information :
Parts Page (click here)
The Groco CP-20-24V is a Bronze Baitwell Pump and Motor unit with 3/4 Inch NPT Inlet by 1/2 Inch NPT Outlet Ports, coupled to a 24 Volt DC Motor. This pump has a 17 GPM flow which is ideal for baitwell circulation or any onboard pumping job that needs high GPM flow but relatively low pressure. The Motor is Ignition Protected and has a 316 stainless steel shaft. This centrifugal pump is silent running, is simple to service and operate, and will handle small solids without pump damage. It will provide high GPM flow but relatively low pressure. Years of trouble-free service can be expected without servicing filters or check valves. A centrifugal pump will not self-prime, so a flooded inlet is required.
Important : DO NOT USE FOR GASOLINE or other combustible fluids.
Features :
Parts and Accessories for Groco model CP-20-24V
Pump Service Kit :
Catalog # P-2, Service Kit
Price: $ 88.00
Impeller :
Catalog # CP-55, Impeller and Set Screw
Price: $ 13.20
Shaft Seal :
Catalog # 031-075-8, Seal
Price: $ 4.40
Motor :
Catalog # 24V-B, Motor
Price: $ 553.52
Other Parts :
Catalog # CP-56, Gasket
Price: $ 3.52
Applications
The CP2024V centrifugal pump is designed for use in fresh or salt water hot or cold circulating systems. Construction is of bronze, stainless steel, or is nonmetallic, so these pumps may be used to pump nearly any NON flammable, nonexplosive liquid. Installation Install the pump in a location that will provide generous air flow to aid in motor cooling. Fasten securely to the mount platform with four 4 1/4" stainless steel fasteners. This pump is not selfpriming so the installation location must assure a flooded inlet. No regular maintenance is required. Freezing water within will damage the pump. Close the inlet seacock and disconnect the connecting fittings or hose to drain water. Remove the pump cover to drain water from the pump cavity.
