Gorman Rupp # INTG1-386 Series INTG1 Magnetic Drive Circulation Pump

Gorman Rupp Pump INTG1-386

Gorman Rupp # INTG1-386

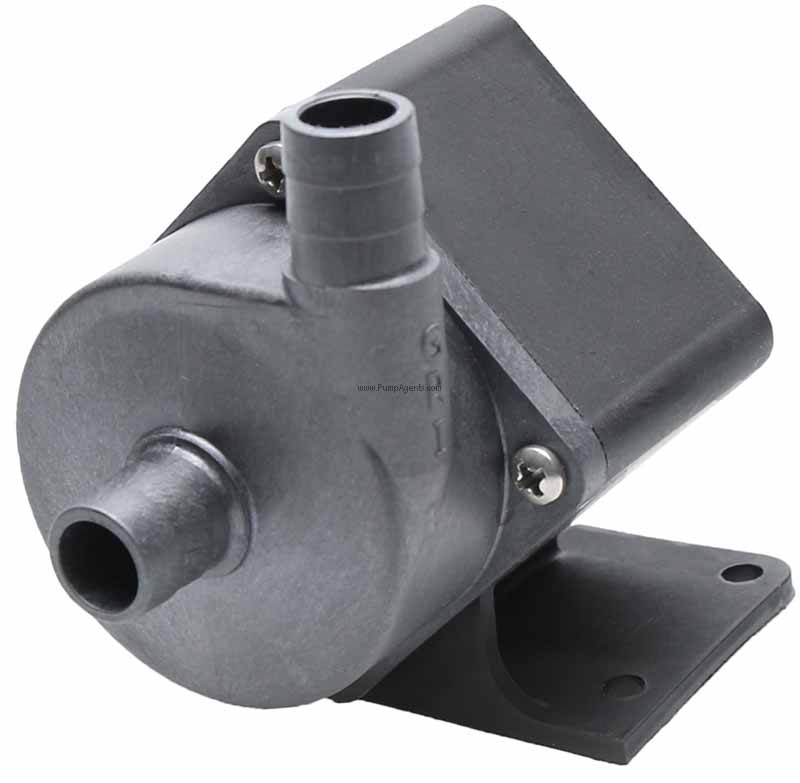

Gorman Rupp catalog # INTG1-386, Magnetic Drive Circulation Pump and Motor unit, INTG1 Series, PPS Plastic (Ryton) construction, PPS Plastic (Ryton) impeller. Motor is 12-24 VDC. 3 Wire. Inlet Port is 3/8 inch MPT, Discharge Port is 3/8 inch MPT.

Price : $ 358.40

Qty :

4 Weeks (0 in stock)



Product Information :

The Gorman Rupp Industries (GRI) model # INTG1-386 is a PPS Plastic (Ryton) Series INTG1 Magnetic Drive Circulation Pump with a PPS Plastic (Ryton) Impeller, 3/8 inch MPT Ports, close coupled to a 12-24 VDC, 3 Wire electric Motor. This pump is made with a special, GRI-specific blend of PPS, and is designed to meet the flow and pressure requirements of an OEM. It comes equipped with a motor that's Brushless and that has a variable DC speed motor. The pump is sealless, and has a minimalist design. It can pump 0.5 to 2.5 gallons a minute, and can be equipped with a tachometer. It consumes a minimum of power (operates at 12-36 DC volts), can be configured in numerous ways, is designed for longevity, and is driven magnetically. The Maximum Power of this pump is approximately 18 Watts. To protect the control board, each Integrity Series pump will be issued with a Maximum Power limit (Watts). To stay within this limit, the recommended fuse size (Amps) will be based on the voltage supplied. (Watts = Voltage X Amps). Motor has The speed of the pump is determined by the voltage supplied. The motor is 3-wire - attaching a 0-5v DC or PWM input signal to the third wire gives the ability to adjust voltage and speed of the pump. If the third wire is not connected, the pump will run full-on. The wetted materials of this pump are PPS Plastic (Ryton), EPDM, and Ceramic. The maximum temperature for this pump is 203 degrees F.
WEIGHT : The Gorman Rupp INTG1-386 weighs 0.8 lbs.

Features :

Pump Body:
PPS Plastic (Ryton)
Impeller:
PPS Plastic (Ryton)
Port Size:
Inlet Port is 3/8 inch MPT, Discharge Port is 3/8 inch MPT.
Motor Specs :
12-24 VDC. 3 Wire.

Applications

Designed for the circulation and transfer of fluids, the Integrity Series INTG1386 Pumps offer a flexible, safe and robust solution to moving fluid in critical hightech OEM applications. These pumps work great in Server and Electronics Cooling where these leakfree, longlasting, and efficient pumps can safely pump fluid in critical applications. Other applications for these pumps are hydronic systems, marine applications, medical technologies, laser systems, beverage dispensers, fluid circulation and recirculation devices, fuel cells, public transit systems, coolant systems, chillers, recreational vehicles, electronic cooling, solar heating and cooling, server cooling, and general coolers. These energy efficient Magnetic Drive Pumps have been proven in many Alternative Energy OEM applications such as Fuel Cells, Hydrogen Generation, Energy Storage, Electric Vehicles, and Solar Thermal. These pumps are also the perfect pump for the server and electronics cooling markets. The increasing popularity of Cloud computing and storage, for both home and business, has created a growing demand for highly efficient and extremely fast data centers. The consequence of higher computer processing speeds is the generation of more heat; not a good thing for electronics. Previously aircooled, many data centers are now switching to liquid cooling technology as a more effective and efficient method of dissipating computergenerated heat in critical hightech equipment. Cooling Distribution Units CDU, Direct Contact Liquid Cooling DCLC and Immersion Cooling technology all use heat exchangers as a means to remove heat away from the electronics. Designed for the circulation and transfer of fluids, these Integrity Series Pumps offer a flexible, safe and robust solution to moving fluid in critical hightech OEM applications. Equipped with an integrated brushless DC variable speed motor, these sealless, motor integrated centrifugal pumps incorporate the components into a compact, lightweight design. Fewer parts promote long life, quiet operation, and low power consumption.

Do Not Run the Pumps without liquid. Pumps must be in a continuous flooded suction environment.
