Gorman Rupp # 12902-004 Centrifugal Pump

Gorman Rupp Pump 12902-004

Gorman Rupp # 12902-004

Gorman Rupp catalog # 12902-004, Series 120 Centrifugal Pump and Motor unit, Phenolic Plastic construction, Phenolic Plastic impeller. Motor is 230 Volts. Inlet Port is 1/2 inch, Discharge Port is 1/2 inch.

Price : $ 403.92

Qty :

4 Weeks (0 in stock)



Product Information :

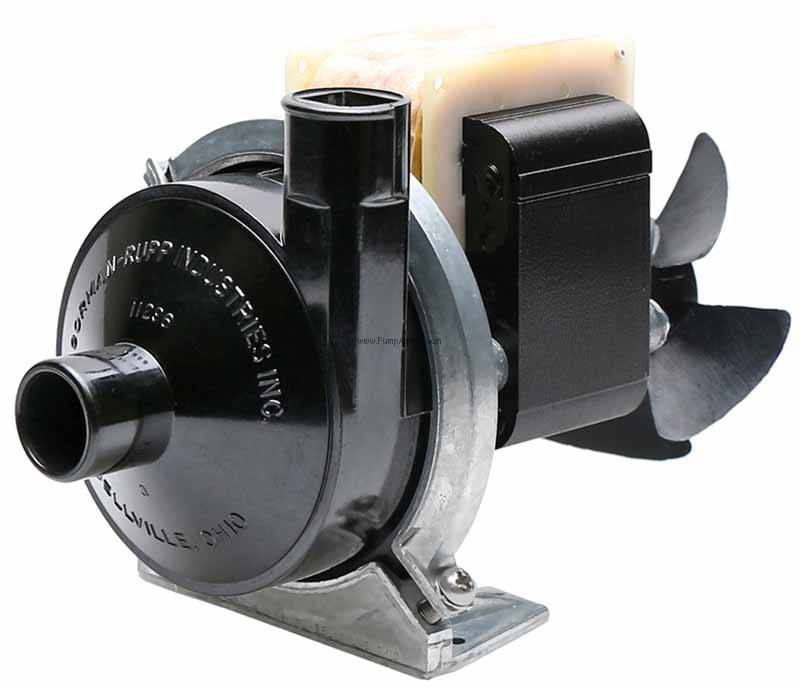

The Gorman Rupp Industries (GRI) model # 12902-004 is a Phenolic Plastic Centrifugal Pump with a Phenolic Plastic Impeller, 1/2 inch Inlet x 1/2 inch Outlet Ports, close coupled to a 230 Volt Motor. This pump has a performance range up to 9 gpm and a maximum head up to 11 feet. These GRI Centrifugal pumps are designed to transfer both corrosive and non-corrosive fluids at maximum hydraulic efficiencies. GRI Centrifugal pumps are not self-priming and must be used in applications where a flooded suction exists. These pumps can not be run dry. These pumps are corrosion resistant, hydraulically efficient with quiet operation, and have flexible mounting and body discharge positions. Motors have low current draw and heat rise, and are continuous duty rated, open, shaded pole, have a Ball bearing and are thermally protected. To allow for optimum life the Maximum Fluid Temperature for pumps with mechanical seals is up to 220 degrees F (104 degrees C).

Features :

Pump Body:
Phenolic Plastic
Impeller:
Phenolic Plastic
Port Size:
Inlet Port is 1/2 inch Inlet, Discharge Port is 1/2 inch Outlet.
Motor Specs :
230 Volts.

Applications

The GRI 12902004 can be used in the production of laundry appliances, industrial floor scrubbers, agricultural sprayers, ice makers, dishwashers, glassware washers, commercial coffee urns, as well as can be utilized in plating systems, residential heating and cooling systems, and commercial cooling and heating systems.
