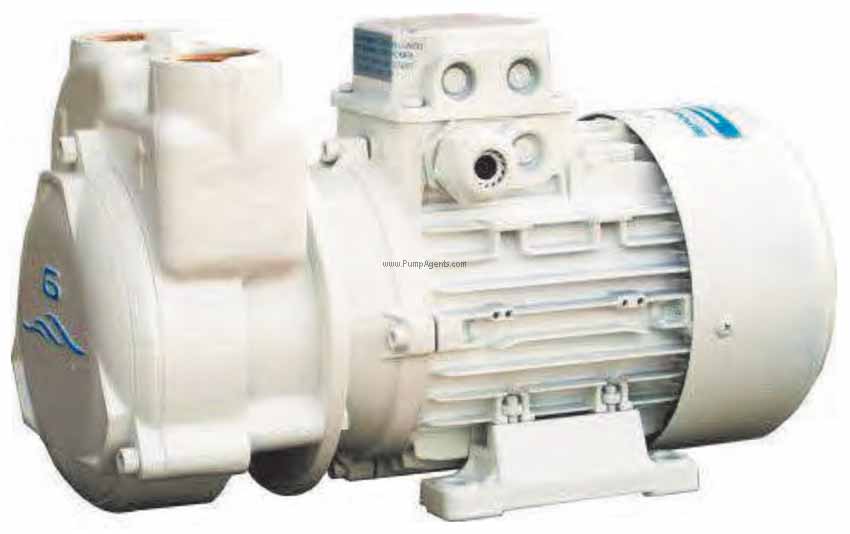

Gianneschi # CP40-230V Self Priming Liquid Ring Pump 0.75 KW 1 HP

Gianneschi Pump CP40-230V

Gianneschi # CP40-230V

Gianneschi catalog # CP40-230V, CP Series Self Priming Liquid Ring Pump and Motor unit, Bronze construction, Bronze impeller, 316 Stainless Steel Shaft. Motor is 0.75 KW (1 Horsepower), 1450 RPM, 230 volts AC, 50/60 Hz, Single Phase. Inlet Port is 1-1/2 Inch, Discharge Port is 1-1/2 Inch.

Price : $ 4141.41

Qty :

2 Weeks (0 in stock)



Product Information :

The Gianneschi CP40-230V is a Bronze CP Series Self Priming Liquid Ring Pump and Motor unit with Bronze Impeller, 1-1/2 Inch by 1-1/2 Inch Ports, coupled to a 0.75 KW (1 Horsepower), 1450 RPM, 230 Volt AC, 50/60 Hz, Single Phase Motor. This pump is specially equipped with a bronze impeller and body, a 316 stainless steel shaft, an a high quality ceramic mechanical seal with graphite inox, as well as utilizes IP55 protections and Class F insulation. It is self-priming up to 8 m, it can go as high as 1750 RPM, and it operates at 60 Hz at 2 Hp. It is recommended that one install a clapet valve and filter with its suction pipe in order to avoid backflow through the pump, and the installed must pump water through it when either rebooting or first initializing it in order to achieve the necessary suction for it to automattically prime itself. Motor has F class Insulation, IP 55 Protection.
WEIGHT : The Gianneschi CP40-230V weighs 59 Lbs.

Features :

Pump Body:
Bronze
Impeller:
Bronze
Shaft:
316 Stainless Steel
Port Size:
Inlet Port is 1-1/2 Inch, Discharge Port is 1-1/2 Inch.
Motor Specs :
0.75 KW (1 Horsepower), 1450 RPM, 230 volts AC, 50/60 Hz, Single Phase.

Applications

Typical applications for the CP40230V include showers, liquid intake, grey water discharges, diesel and oil, bilges, galleys, as well as in pumping seawater and fresh water. This pump is not suitable for viscous liquids or pumping abrasive liquids. Install the pump in a dry and well ventilated location with room temperature not above 50 degrees C. The pump must be placed on a solid and clean surface in horizontal position, feet down. To reduce vibration block the machine with the bolts to the surface and install some vibration dumpers. This pump usually does not need any maintenance so long as the following precautions are taken If there is a risk of freezing, it is necessary to empty the pump casing then fill the pump up before it gets working again. Make sure the pump never works dry. If the pump does not work for a long time it is better to empty the pump casing and clean it. If a filter and a foot valve are installed, check periodically their integrity and cleanness.
