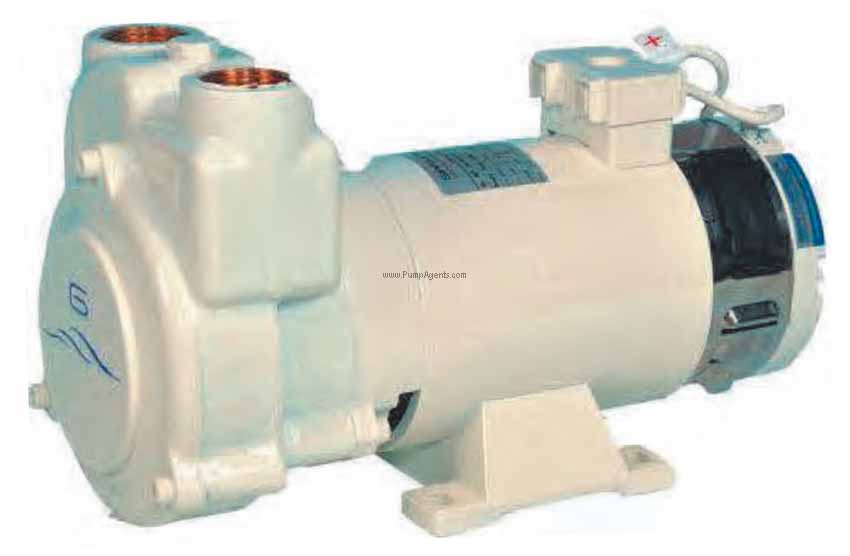

Gianneschi # CP26-12V Self Priming Liquid Ring Pump 0.2KW 0.25 HP
Gianneschi # CP26-12V
Gianneschi catalog # CP26-12V, CP Series Self Priming Liquid Ring Pump and Motor unit, Bronze construction, Bronze impeller, 316 Stainless Steel Shaft. Motor is 0.2KW (0.25 Horsepower), 1500 RPM, 12 Volts DC. Inlet Port is 1 Inch, Discharge Port is 1 Inch.
Price : $ 1965.81
Product Information :
The Gianneschi CP26-12V is a Bronze CP Series Self Priming Liquid Ring Pump and Motor unit with Bronze Impeller, 1 Inch by 1 Inch Ports, coupled to a 0.2KW (0.25 Horsepower), 1500 RPM, 12 Volts DC Motor. This pump is self-priming up to 8 m, it operates at 0.25 Hp at 12 V, and it can go as high as 1500 RPM. But, in order for it to achieve the necessary suction to be self-priming, the installer must pump water through it on its first run after long-term disuse or on first initialization. It is specially equipped with Class B insulation, a bronze impeller and body, a high quality ceramic mechanical seal with graphite inox, IP20/22 protections, and a 316 stainless steel shaft. However, it is recommended that one also install a clapet valve and filter with its suction pipe to prevent any backflow though it. Motor has B class Insulation, IP 20/22 Protection.
WEIGHT : The Gianneschi CP26-12V weighs 22 Lbs.
Features :
Applications
This pump's primary uses are in galleys, diesel and oil, bilges, liquid intake, pumping seawater and freshwater, showers, as well as in grey water discharge. This pump is not suitable for viscous liquids or pumping abrasive liquids. Install the pump in a dry and well ventilated location with room temperature not above 50 degrees C. The pump must be placed on a solid and clean surface in horizontal position, feet down. To reduce vibration block the machine with the bolts to the surface and install some vibration dumpers. This pump usually does not need any maintenance so long as the following precautions are taken If there is a risk of freezing, it is necessary to empty the pump casing then fill the pump up before it gets working again. Make sure the pump never works dry. If the pump does not work for a long time it is better to empty the pump casing and clean it. If a filter and a foot valve are installed, check periodically their integrity and cleanness.
