Gianneschi # CP-30-A1-230V Self Priming Liquid Ring Pump 0.37KW 0.5 HP

Gianneschi Pump CP-30-A1-230V

Gianneschi # CP-30-A1-230V

Gianneschi catalog # CP-30-A1-230V, CP Series Self Priming Liquid Ring Pump and Motor unit, Bronze construction, Bronze impeller, 316 Stainless Steel Shaft. Motor is 0.37KW (0.5 Horsepower), 1450 RPM, 230 volts AC, 50/60 Hz, Single Phase. Inlet Port is 1 Inch, Discharge Port is 1 Inch. Catalog # 01ACP302A1.

Price : $ 2175.60

Qty :

2 Weeks (0 in stock)



Product Information :

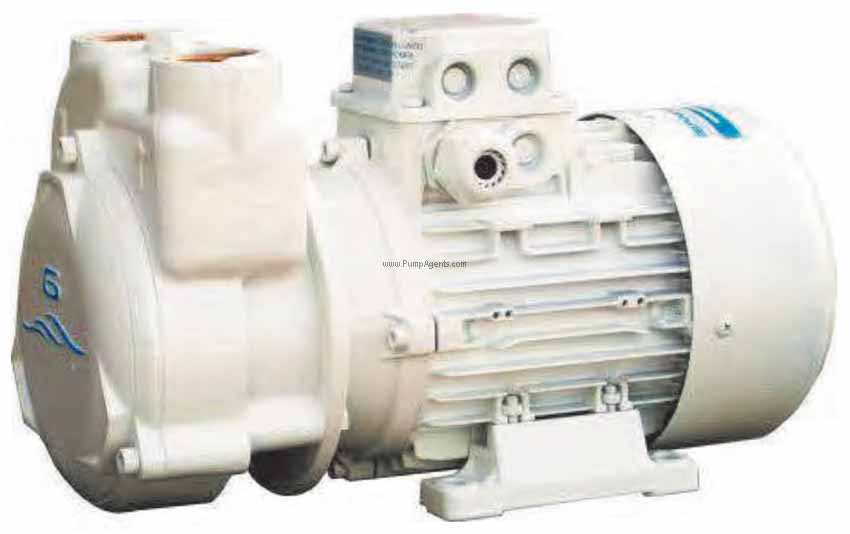

The Gianneschi CP-30-A1-230V is a Bronze CP Series Self Priming Liquid Ring Pump and Motor unit with Bronze Impeller, 1 Inch by 1 Inch Ports, coupled to a 0.37KW (0.5 Horsepower), 1450 RPM, 230 Volt AC, 50/60 Hz, Single Phase Motor. This pump operates at 230 V at 0.5 Hp, is self-priming up to 8 m, and can go as high as 1500 RPM. For it to achieve this self-priming ability, one must pump water through it on its first initialization, or after a long period of disuse. It utilizes IP55 protections, a 316 stainless steel shaft, Class F insulation, a bronze impeller and body, and a high quality ceramic mechanical seal with graphite inox. It is suggested that one install a clapet valve and filter with it in order to prevent any backflow through it. Motor has F class Insulation, IP 55 Protection.
WEIGHT : The Gianneschi CP-30-A1-230V weighs 27 Lbs.

Features :

Pump Body:
Bronze
Impeller:
Bronze
Shaft:
316 Stainless Steel
Port Size:
Inlet Port is 1 Inch, Discharge Port is 1 Inch.
Motor Specs :
0.37KW (0.5 Horsepower), 1450 RPM, 230 volts AC, 50/60 Hz, Single Phase.

Applications

This pump is meant to be used primarily in liquid intake, in bilges, in galleys, in diesel and oil, in showers, in pumping seawater and fresh water, and in grey water discharges. This pump is not suitable for viscous liquids or pumping abrasive liquids. Install the pump in a dry and well ventilated location with room temperature not above 50 degrees C. The pump must be placed on a solid and clean surface in horizontal position, feet down. To reduce vibration block the machine with the bolts to the surface and install some vibration dumpers. This pump usually does not need any maintenance so long as the following precautions are taken If there is a risk of freezing, it is necessary to empty the pump casing then fill the pump up before it gets working again. Make sure the pump never works dry. If the pump does not work for a long time it is better to empty the pump casing and clean it. If a filter and a foot valve are installed, check periodically their integrity and cleanness.
