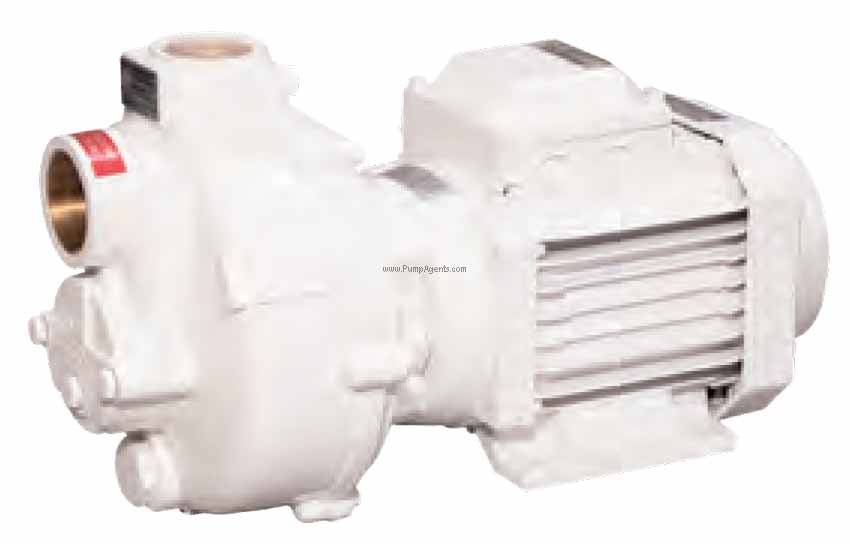

Gianneschi # BMA-M-32-230/400V- Self Priming Centrifugal Pump 1.1 KW 1.5 HP

Gianneschi Pump BMA-M-32-230/400V-

Gianneschi # BMA-M-32-230/400V-

Gianneschi catalog # BMA-M-32-230/400V-, BMA Series Self Priming Centrifugal Pump and Motor unit, Bronze construction, Bronze impeller, 316 Stainless Steel Shaft. Motor is 1.1 KW (1.5 Horsepower), 2900 RPM, 230/400 volts AC, 50/60 Hz, Three Phase. Inlet Port is 1-1/2 Inch BSP Inlet, Discharge Port is 1-1/4 Inch BSP Outlet. Catalog # 01ABM3212M213.

Price : Contact Us

Qty :

2 Weeks (0 in stock)



Product Information :

The Gianneschi BMA-M-32-230/400V- is a Bronze BMA Series Self Priming Centrifugal Pump and Motor unit with Bronze Impeller, 1-1/2 Inch BSP Inlet by 1-1/4 Inch BSP Outlet Ports, coupled to a 1.1 KW (1.5 Horsepower), 2900 RPM, 230/400 volts AC, 50/60 Hz, Three Phase Motor. This pump comes specially equipped with a bronze 4-bladed open impeller, a bronze body that easily expels air from its interior, bronze counter flanges, a high quality mechanical seal, and a bronze bi-channel volute which rapidly primes the pump. Due to the match between the impeller and the volute construction, the centrifugal pump BMA 50/160 is suitable to transfer loaded and low viscosity liquids. The pump's rapid self-priming capacity avoids dry running with liquids containing air. As the pump is made up of high quality components, such as Ni-AI-Bronze, it makes it extremely light and perfectly compatible with sea water. It's got good strength and wear resistance which reduces maintenance cost. All the above mentioned construction details make this pump very suitable for a wide range of applications It features a dual channel volute for more rapid priming and wearing plane, and an innovative body pump with a special design that allows the expulsion of air easier.

Features :

Pump Body:
Bronze
Impeller:
Bronze
Shaft:
316 Stainless Steel
Port Size:
Inlet Port is 1-1/2 Inch BSP Inlet, Discharge Port is 1-1/4 Inch BSP Outlet.
Motor Specs :
1.1 KW (1.5 Horsepower), 2900 RPM, 230/400 volts AC, 50/60 Hz, Three Phase.

Applications

This pump is a selfpriming centrifugal pump with macerator. The special centrifugal impeller combined with the macerator, make it optimal for use with fluids containing fibrous material. The fragmentation into small parts and the working pressure, allow the use of pipes with a smaller diameter. It is a good choice for handling grey/black waters, even with suspended particles. Typical applications for the BMAM32230/400V include chain washing, air conditioners, emptying operations, bilges, cooling systems, OEM, fire fighting, ballasts, gray water systems, as well as swimming pool filling.
