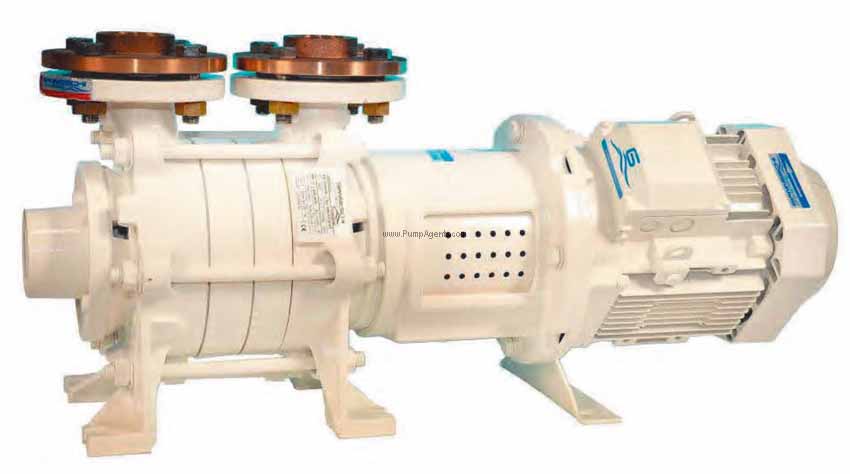

Gianneschi # ACM311-230V Self Priming Multi Stage Pump 1.1 KW 1.5 HP

Gianneschi Pump ACM311-230V

Gianneschi # ACM311-230V

Gianneschi catalog # ACM311-230V, ACM Series Self Priming Multi Stage Liquid Ring Pump and Motor unit, Bronze construction, Bronze impeller, 316 Stainless Steel Shaft. Motor is 1.1 KW (1.5 Horsepower), 1450 RPM, 230 volts AC, 50/60 Hz, Single Phase. Inlet Port is 1-1/4 Inch, Discharge Port is 1-1/4 Inch.

Price : $ 9264.43

Qty :

2 Weeks (0 in stock)



Product Information :

The Gianneschi ACM311-230V is a Bronze ACM Series Self Priming Multi Stage Liquid Ring Pump and Motor unit with Bronze Impeller, 1-1/4 Inch by 1-1/4 Inch Ports, coupled to a 1.1 KW (1.5 Horsepower), 1450 RPM, 230 Volt AC, 50/60 Hz, Single Phase Motor. This pump operates at 60 Hz at 1.5 Hp, can go as high as 1750 RPM, and is self-priming up to 8 m. It is suggested that one install a filter and clapet valve with it to prevent backflow, and one need only run water through it on its first run in order for it to become fully operational. It comes specially with a 316 stainless steel shaft, a bronze impeller and body, as well as a high quality ceramic mechanical seal with graphite inox. Motor has F class Insulation, IP 55 Protection.
WEIGHT : The Gianneschi ACM311-230V weighs 132 Lbs.

Features :

Pump Body:
Bronze
Impeller:
Bronze
Shaft:
316 Stainless Steel
Port Size:
Inlet Port is 1-1/4 Inch, Discharge Port is 1-1/4 Inch.
Motor Specs :
1.1 KW (1.5 Horsepower), 1450 RPM, 230 volts AC, 50/60 Hz, Single Phase.

Applications

Typical applications for the ACM311230V include diesel and oil, mixture pumping, bilges, water plat supply, fire fighting, seawater pumping, chain washing, as well as in the pumping of liquids with high gaseous content.
