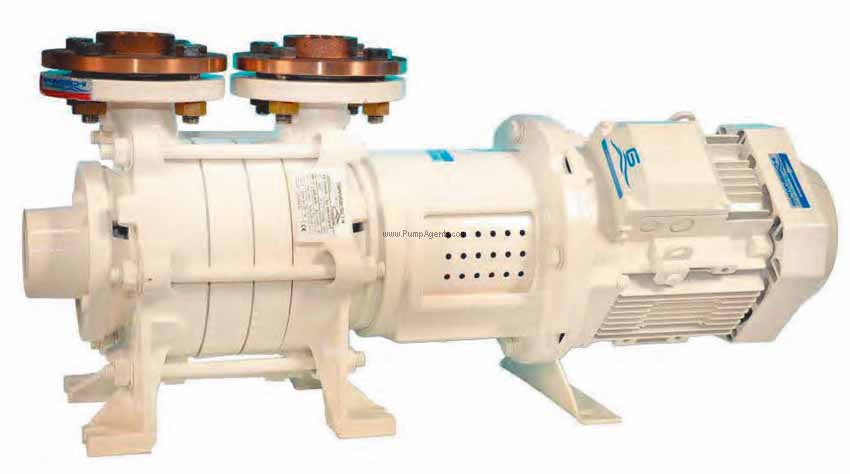

Gianneschi # ACM-312BT-230V Self Priming Multi Stage Pump 2.2 KW 3 HP
Gianneschi # ACM-312BT-230V
Gianneschi catalog # ACM-312BT-230V, ACM Series Self Priming Multi Stage Liquid Ring Pump and Motor unit, Bronze construction, Bronze impeller, 316 Stainless Steel Shaft. Motor is 2.2 KW (3 Horsepower), 1450 RPM, 230 volts AC, 50/60 Hz, Single Phase. Inlet Port is 1-1/4 Inch, Discharge Port is 1-1/4 Inch. Catalog # 01AAM342.
Price : $ 11336.43
Product Information :
The Gianneschi ACM-312BT-230V is a Bronze ACM Series Self Priming Multi Stage Liquid Ring Pump and Motor unit with Bronze Impeller, 1-1/4 Inch by 1-1/4 Inch Ports, coupled to a 2.2 KW (3 Horsepower), 1450 RPM, 230 Volt AC, 50/60 Hz, Single Phase Motor. This pump comes specially equipped with a 316 stainless steel shaft, a bronze impeller and body, and a high quality ceramic mechanical seal with graphite inox. It is recommended that one install a clapet valve and filter with it to prevent backflow, and it is only required that one pump water though it on its first run in order for it to become fully operational. It operates at 60 Hz at 3 Hp, it is self priming as high as 8 m, and it can go up to 1750 RPM. Motor has F class Insulation, IP 55 Protection.
WEIGHT : The Gianneschi ACM-312BT-230V weighs 132 Lbs.
Features :
Applications
Typical applications for the ACM312BT230V include bilges, seawater pumping, chain washing, diesel and oil, water plant supply, mixture pumping, fire fighting, as well as in the pumping of liquids with a high gaseous content.
