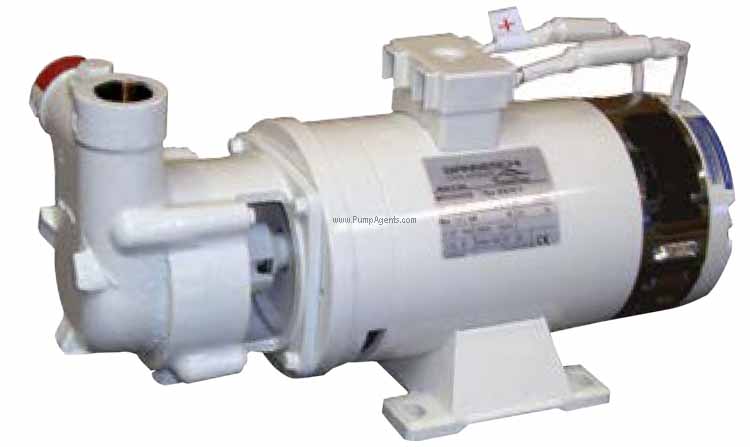

Gianneschi # ACB80-24V Self Priming Liquid Ring Pump 0.37kW 0.5 HP
Gianneschi # ACB80-24V
Gianneschi catalog # ACB80-24V, ACB Series Self Priming Liquid Ring Pump and Motor unit, Bronze construction, Brass impeller, 316 Stainless Steel Shaft. Motor is 0.37kW (0.5 Horsepower), 2800 RPM, 24 Volts DC. Inlet Port is 3/4 Inch, Discharge Port is 3/4 Inch.
Price : $ 2025.38
Product Information :
The Gianneschi ACB80-24V is a Bronze ACB Series Self Priming Liquid Ring Pump and Motor unit with Brass Impeller, 3/4 Inch by 3/4 Inch Ports, coupled to a 0.37kW (0.5 Horsepower), 2800 RPM, 24 Volts DC Motor. This pump is self-priming up to 8 m, operates at 24 V at 0.5 Hp, and can go as high as 3000 RPM. It is suggested that one install a clapet valve and a filter with it to avoid backflow, and one only needs to pump water through it for its first run. It comes specially equipped with a high quality ceramic mechanical seal with graphite inox, a brass impeller, a 316 stainless steel shaft, and a bronze body. Motor has B/F class Insulation, IP 20/22 Protection.
WEIGHT : The Gianneschi ACB80-24V weighs 24.2 Lbs.
Features :
Applications
Typical applications for the ACB8024V include fire fighting, oil and diesel, bilges, chain washing, water supplying, and any applications involving the pumping of seawater or liquids with a high gas content.
