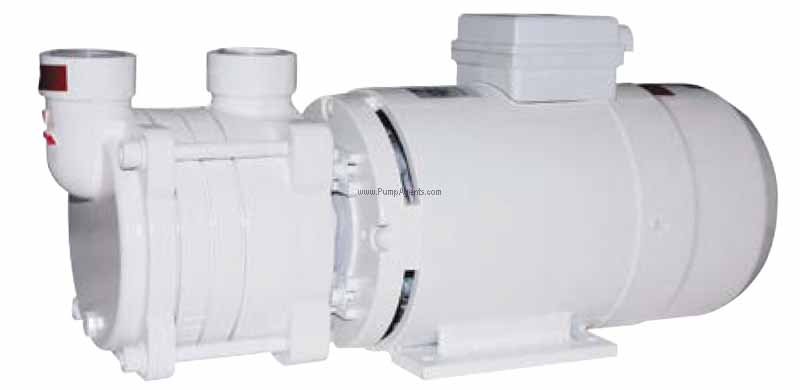

Gianneschi # ACB331/2-24V Self Priming Multi Stage Pump 1.1KW 1.5 HP

Gianneschi Pump ACB331/2-24V

Gianneschi # ACB331/2-24V

Gianneschi catalog # ACB331/2-24V, ACB Series Self Priming Liquid Ring Pump and Motor unit, Bronze construction, Bronze impeller, 316 Stainless Steel Shaft. Motor is 1.1KW (1.5 Horsepower), 1750 RPM, 24 Volts DC. Inlet Port is 1-1/4 Inch, Discharge Port is 1-1/4 Inch.

Price : $ 5765.34

Qty :

2 Weeks (0 in stock)



Product Information :

The Gianneschi ACB331/2-24V is a Bronze ACB Series Self Priming Liquid Ring Pump and Motor unit with Bronze Impeller, 1-1/4 Inch by 1-1/4 Inch Ports, coupled to a 1.1KW (1.5 Horsepower), 1750 RPM, 24 Volts DC Motor. This pump is an outstanding self-priming pump, with side channel and liquid ring construction, that is simple and compact. This pump is self-priming up to 8 m, can go as high as 1500 RPM, and operates at 24 V at 1.1KW (1.5 HP). One only needs to pump water through it on its first run for it to become fully operational, and it is suggested that one install a clapet valve and filter with it to prevent backflow. It comes specially equipped with a 316 stainless steel shaft, a bronze body, a high quality ceramic mechanical seal with graphite inox, and a bronze impeller. Motor has B class Insulation, IP 20/22 Protection.
WEIGHT : The Gianneschi ACB331/2-24V weighs 62 Lbs.

Features :

Pump Body:
Bronze
Impeller:
Bronze
Shaft:
316 Stainless Steel
Port Size:
Inlet Port is 1-1/4 Inch, Discharge Port is 1-1/4 Inch.
Motor Specs :
1.1KW (1.5 Horsepower), 1750 RPM, 24 Volts DC.

Applications

Typical applications for the ACB331/224V include mixture pumping, bilges, oil and diesel, water supply plants, fire fighting, chain washing, as well as in the pumping of seawater or liquids with high gas contents.
